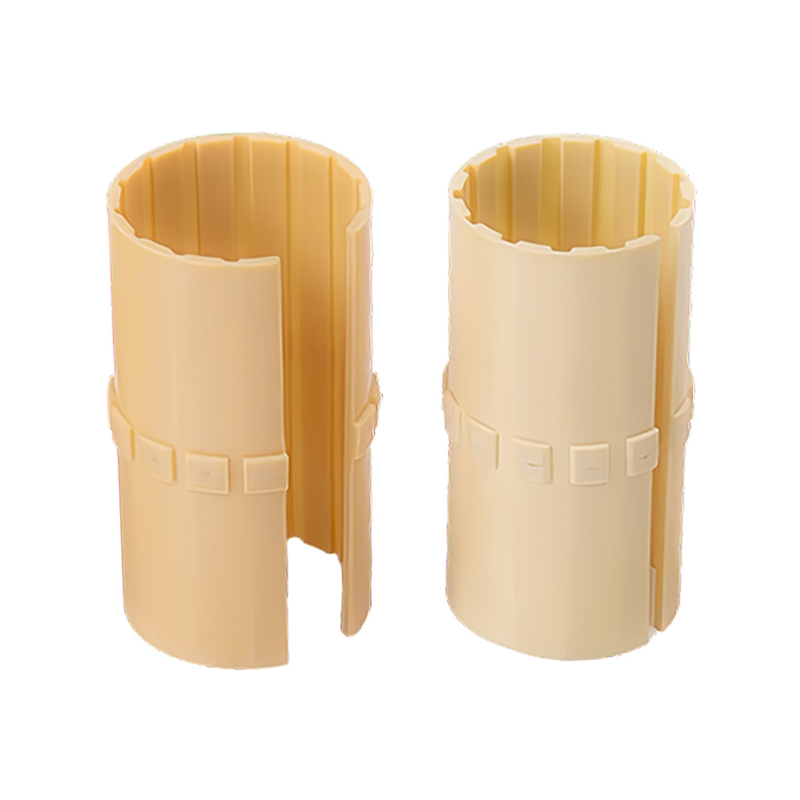

HZ-LIN Sealed engineering plastic bearing sliding film

The HZ-LIN Engineering Plastic Bearing Sliding Film is crafted from advanced fiber-reinforced polymers embedded with solid lubricants, ensuring exceptional wear resistance and maintenance-free operation. Its optimized blend of base resin, reinforcing fibers, and micro-encapsulated lubricant particles enables consistent friction reduction across varying loads and speeds.

Material: High-strength engineering plastic matrix (e.g., POM, PA66) with embedded solid lubricants (PTFE, graphite).

Design:
Self-lubricating via controlled release of lubricant particles under motion.
Corrosion-resistant, chemical-inert, and immune to dust ingress.
Lightweight with high compressive strength (up to 120MPa static load).

Performance:
Low friction coefficient (μ=0.05–0.15) across -40°C to 120°C.
Excellent PV value (≤1.5 MPa·m/s) for dynamic applications.
Absorbs hard contaminants without compromising surface integrity.
Applications: Conveyor systems, packaging machinery, agricultural pivots, and low-speed rotary joints.

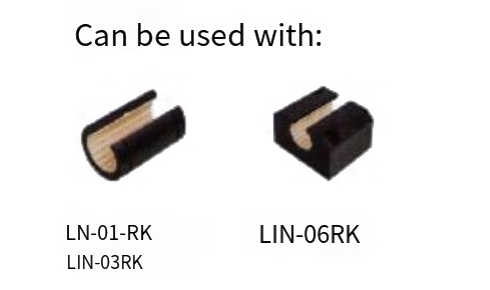

Suitable for supporting shafts

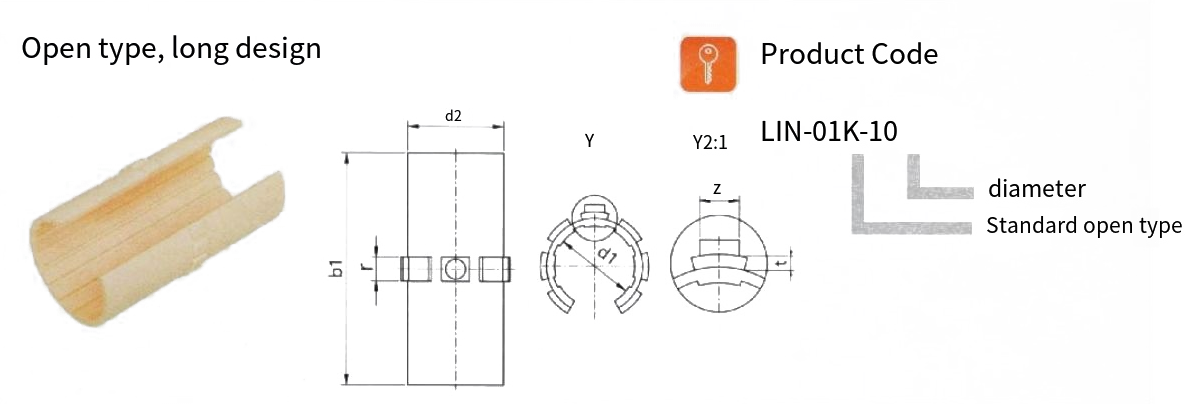

Size: mm

Product Code	d1	tolerance	D2	b1	r	t	With	Weight g
LIN-01-10	10	+0.030 +0.070	12	28	3	0.8	2.5	0.9
LIN-01-12	12	+0.030 +0.070	14	31	3	0.8	3	1.16
LIN-01-16	16	+0.030 +0.070	18	35	3.5	0.8	3.5	1.70
LIN-01-20	20	+0.030 +0.070	23	44	5	0.8	3.5	4.16
LIN-01-25	25	+0.030 +0.070	28	57	5	0.8	A	6.98
LIN-01-30	30	+0.040 +0.085	34	67	5	0.8	4	12.35
LIN-01-40	40	+0.040 +0.065	44	79	6	1.3	5	20.18
LIN-01-50	50	+0.050 +0.100	55	99	7	1.3	6	38.60

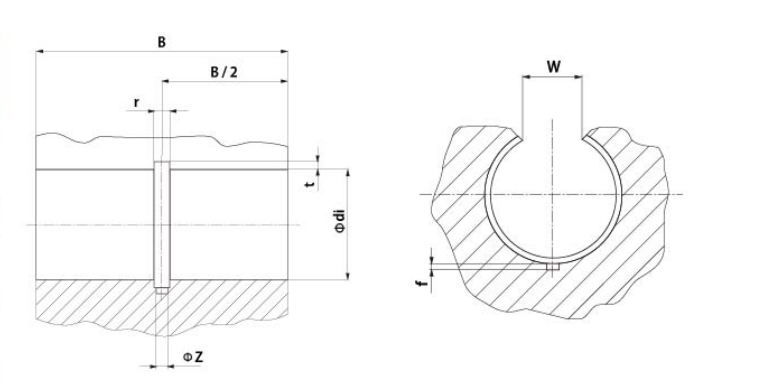

Assembly drawing test for the base hole of sliding film LN-01
Size: mm

Product Code	Axis Φ	of H7	B h10	W +0.2	r	t	f	z
LIN-01-10	10	12	29	7.3	3	1.0	1.0	2.6
LIN-01-12	12	14	32	9	3	1.0	1.5	3.1
LIN-01-16	16	18	36	11.6	3.5	1.0	1.7	3.6
LIN-01-20	20	23	45	12	5	1.0	2.0	3.6
LIN-01-25	25	28	58	14.5	5	1.0	2.0	4.1
LIN-01-30	35	39	70	16.6	5	1.0	2.0	4.1
LIN-01-40	40	44	80	21	6	1.5	2.5	5.1
LIN-01-50	50	55	100	25.5	7	1.5	2.5	6.1

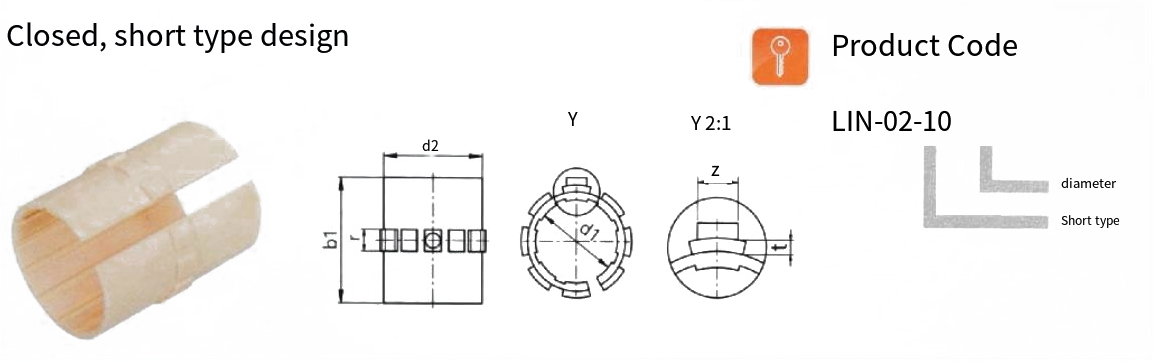

LIN sliding film

Size: mm

Product code	d1	Public errand	D2	b1	r	t	z	F maximum value dynamics P=5MPa[N]	F maximum value static state P=35MPa[N]	Weight g
LIN-02-10	10	+0.030 +0.070		25		0.8	2.5	650		1.02
LIN-02-12	12	+0.030 +0.070	14	27	3	0.8	3	840	5880	1.27
LIN-02-16	16	+0.030 +0.070	18	29	3.5	0.8	3.5	1200	8400	1.82
LIN-02-20	20	+0.030 +0.070	23	29	5	0.8	3.5	1500	10600	3.27
LIN-02-25	25	+0.030 40.070	28	39	5	0.8	4	2500	17500	5.75
LIN-02-30	30	+0.040 +0.065	34	49	5	0.8	4	3750	26250	11.28
LIN-02-35	35	+0.040 +0.065	39	59	5	1.3	4	6000	42000	17.94
LIN-02-40	40	+0.040 +0.086	44	59	6	1.3	6	7200	50400	27.00
LIN-02-50	50	+0.050 +0.100	56	69	7	1.3	6	8750	61250	32.56

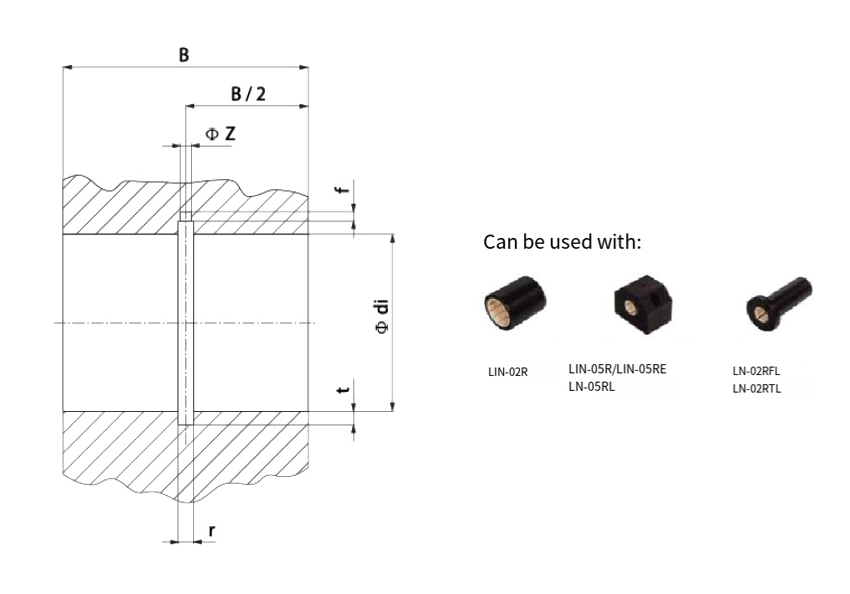

Assembly drawing test for the base hole of sliding film LN-02
Size: mm

Product code	Axle Φ	di H7	B h10	r	t	f	z
LIN-02-10	10	12	26	3	1.0	1.0	2.6
LIN-02-12	12	14	28	3	1.0	1.5	3.1
LIN-02-16	16	18	30	3.5	1.0	1.7	3.6
LN-02-20	20	23	30	5	1.0	2.0	3.6
LIN-02-25	25	28	40	5	1.0	2.0	4.1
LIN-02-30	30	34	50	5	1.0	2.0	4.1
LIN-02-35	35	39	60	6	1.5	2.5	5.1
LIN-02-40	40	44	60	7	1.5	2.5	6.1
LIN-02-50	50	55	70	7	1.5	2.5	6.1
