HZ-FZ Ball guide bushing

Product Overview

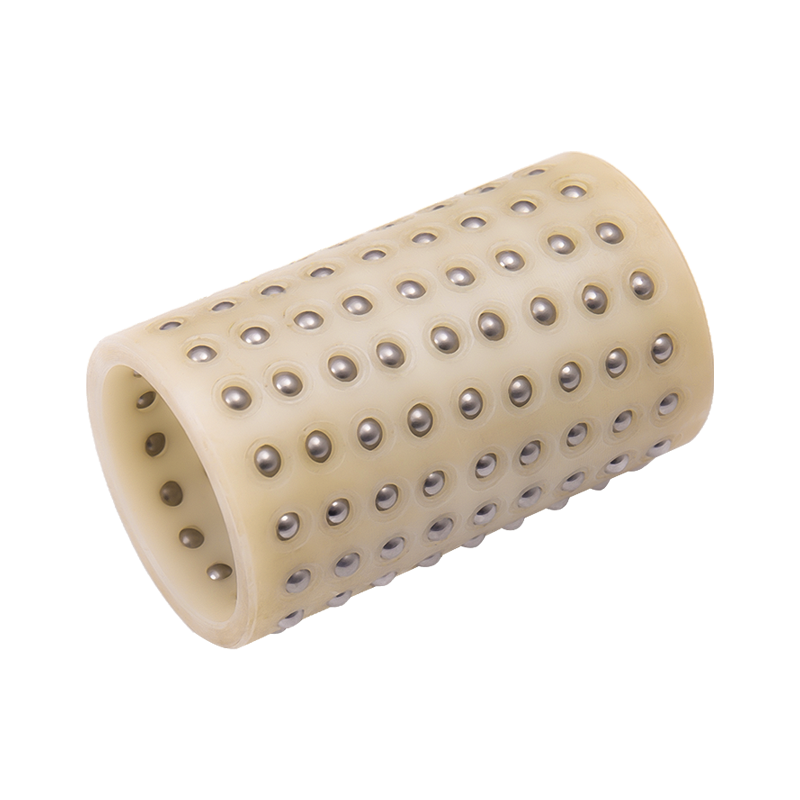

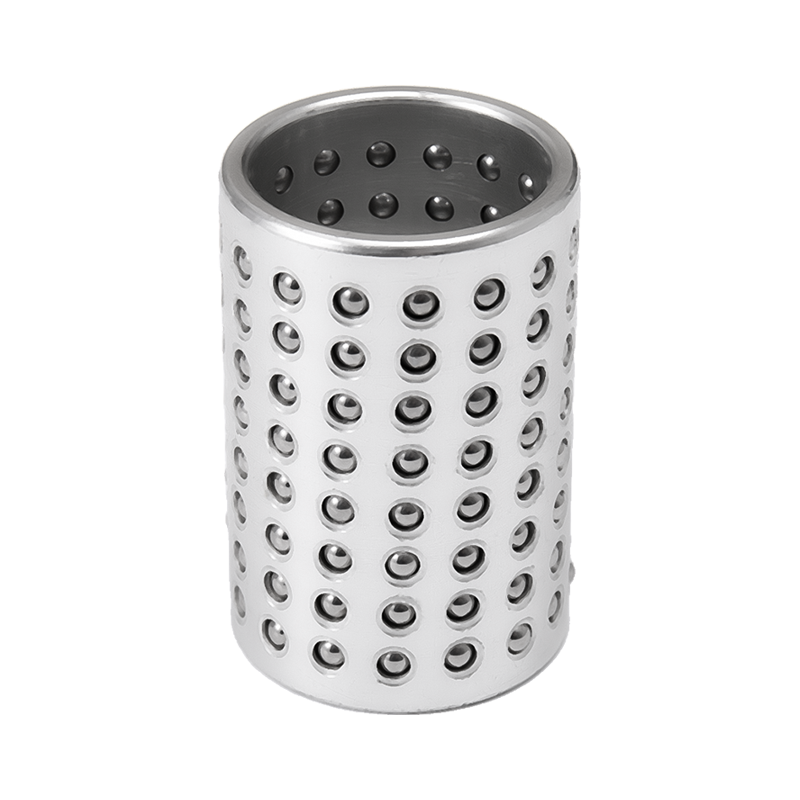

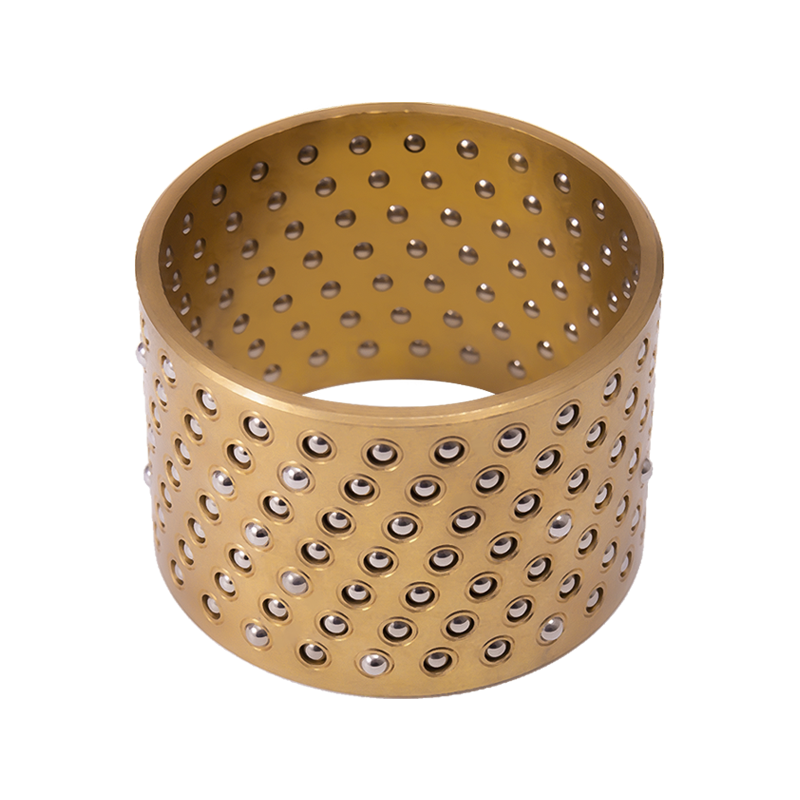

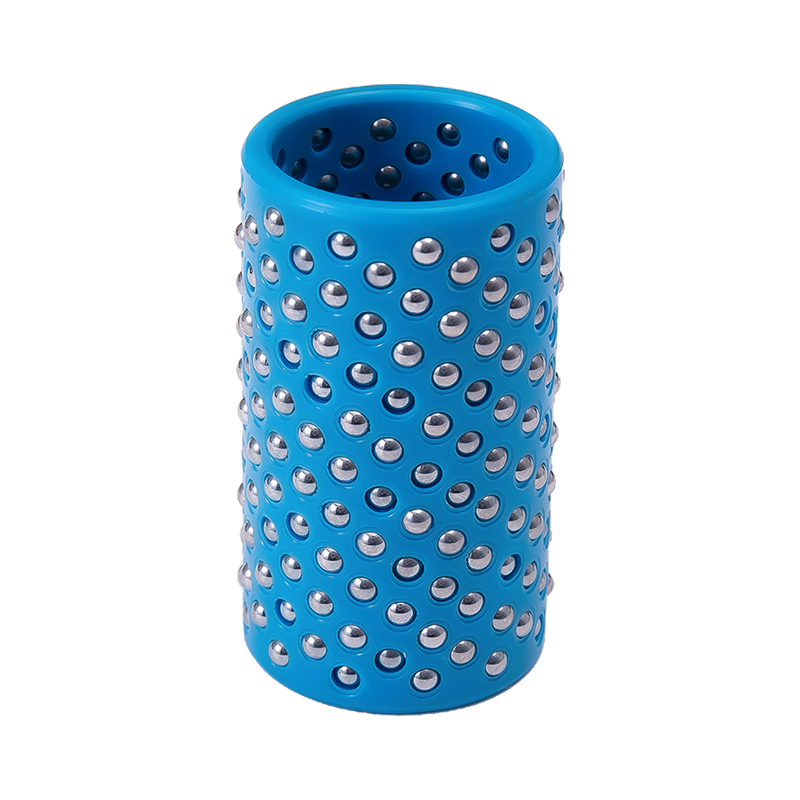

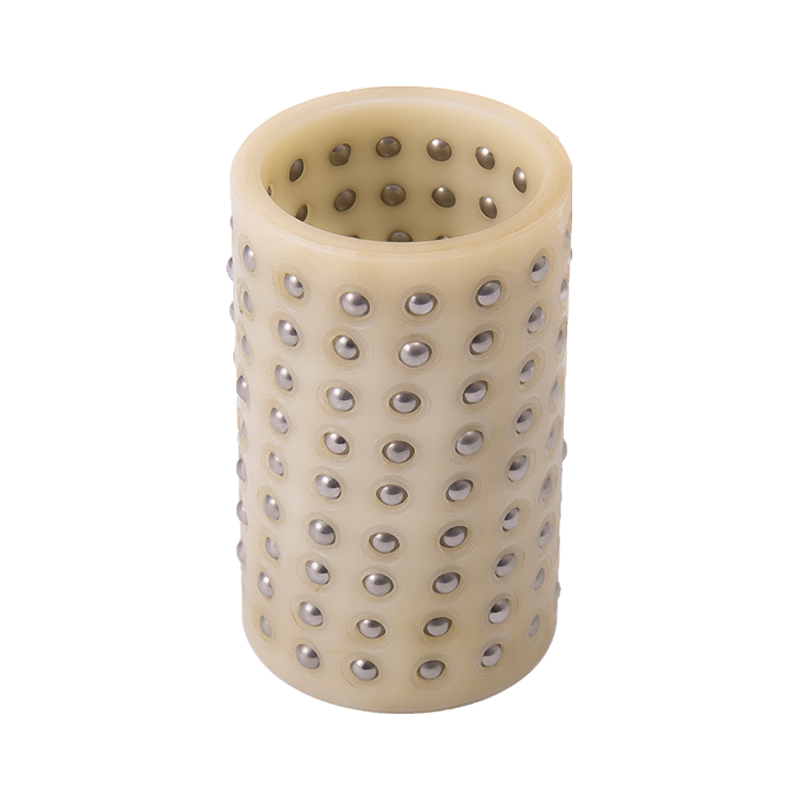

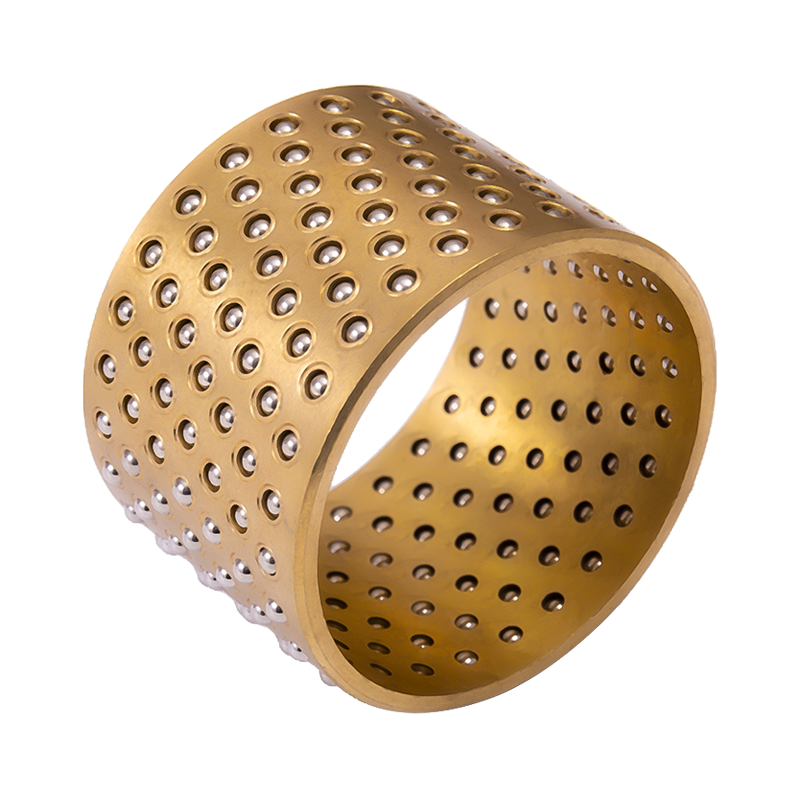

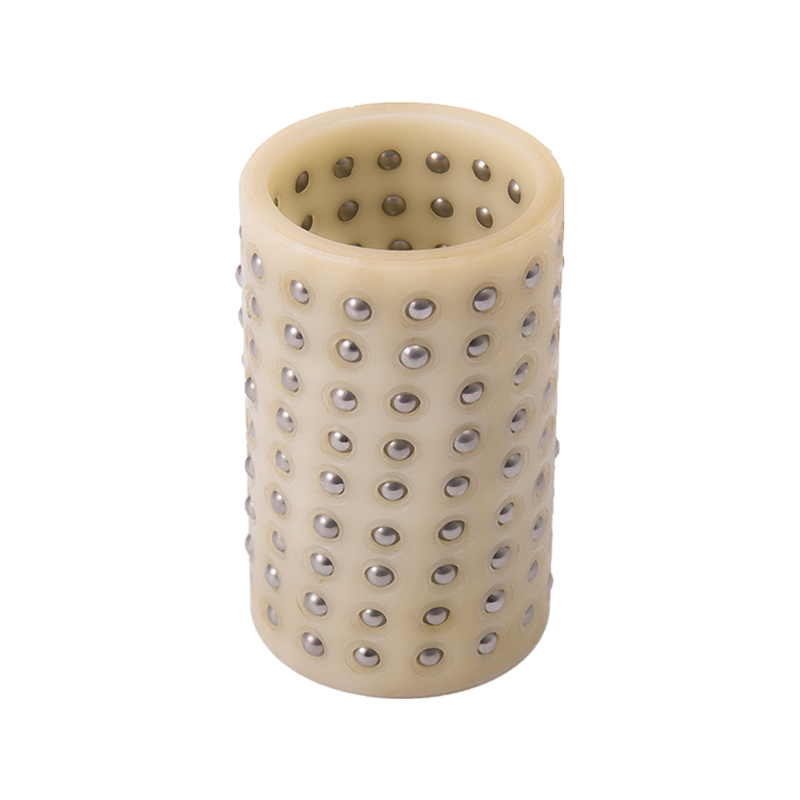

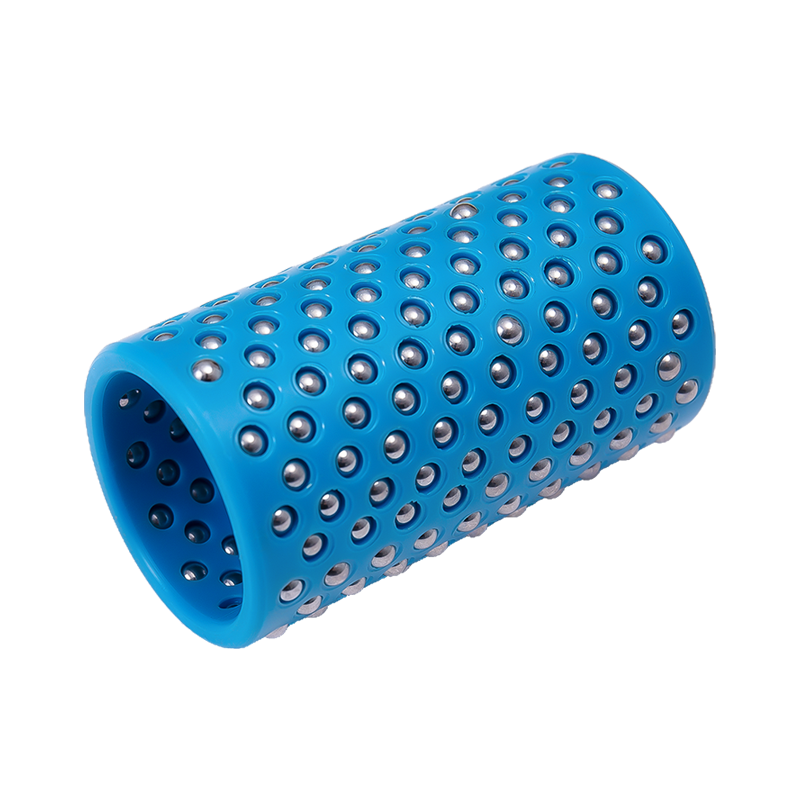

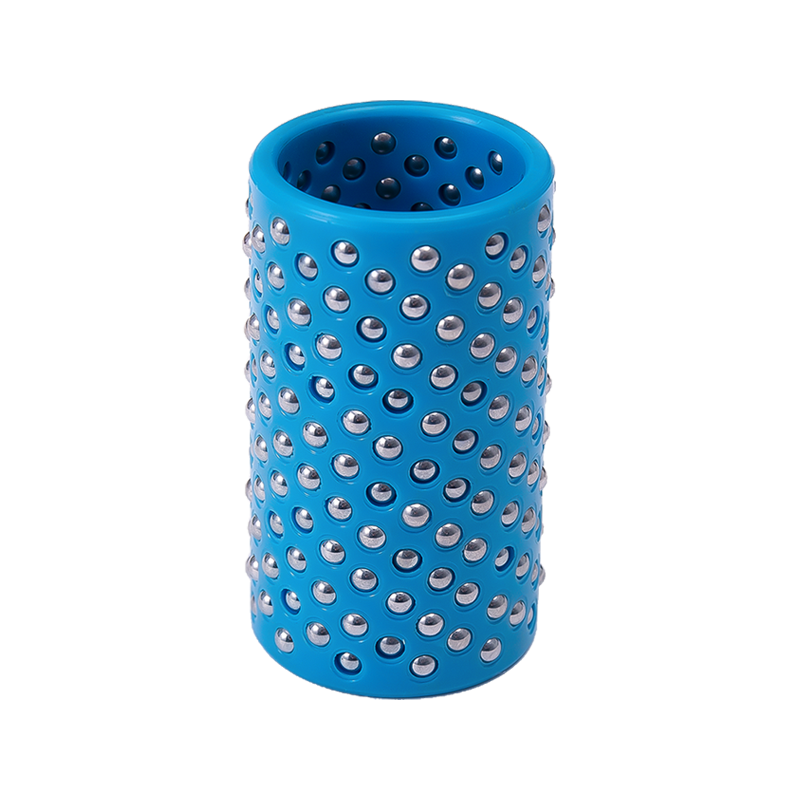

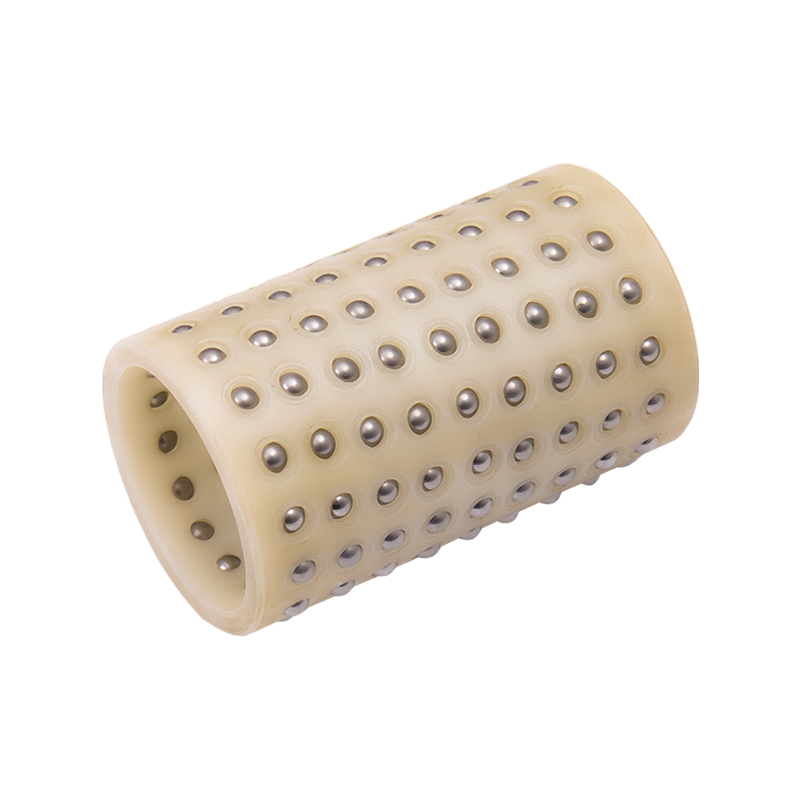

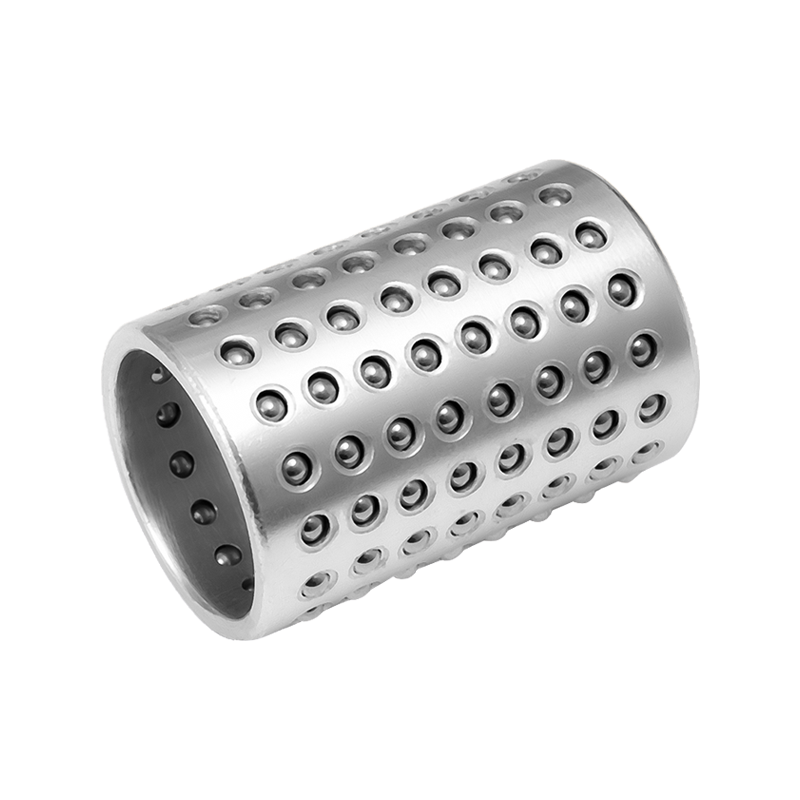

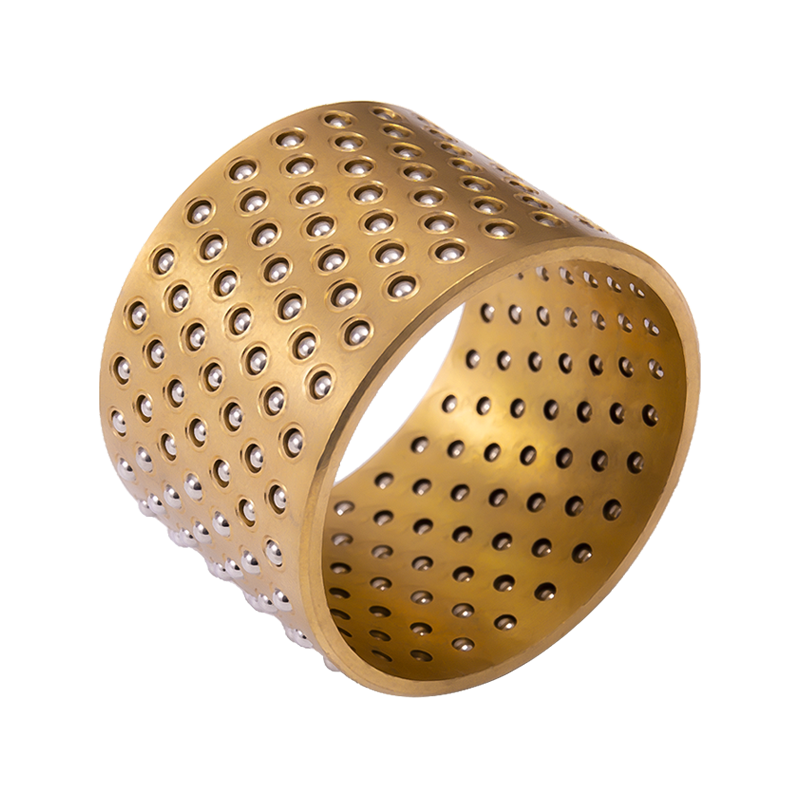

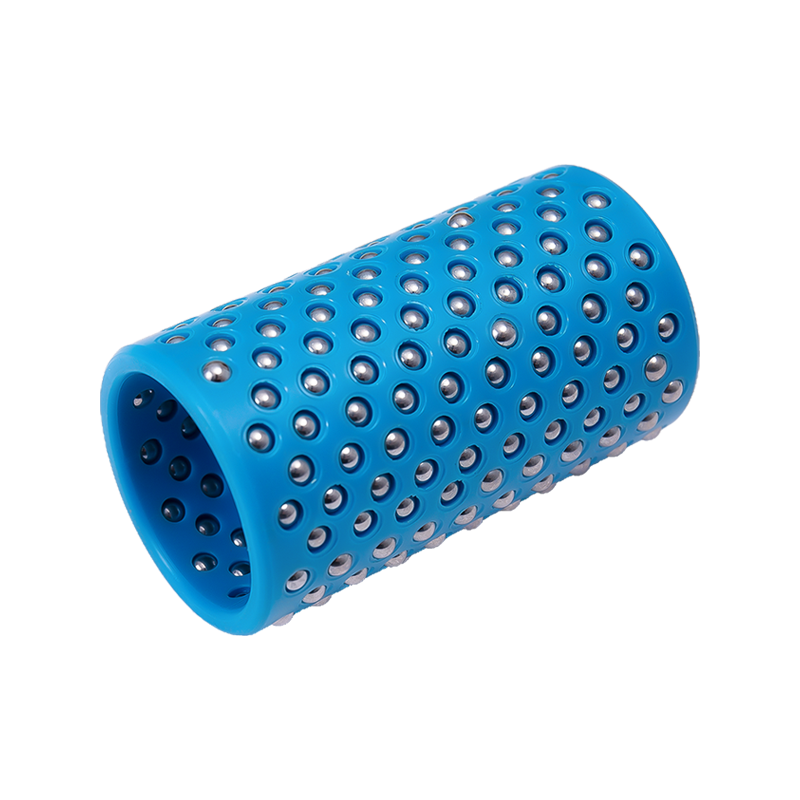

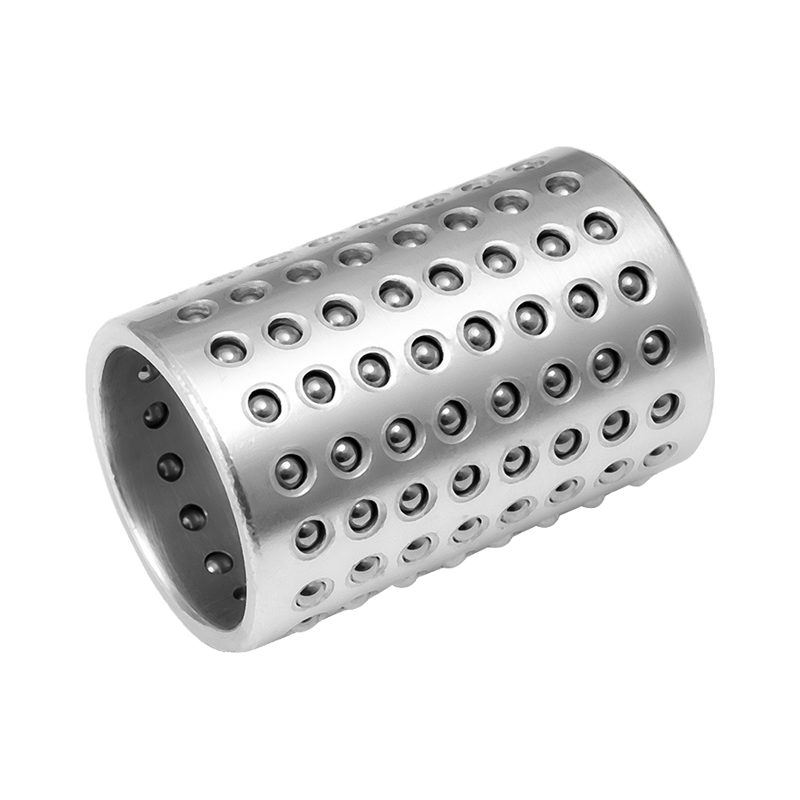

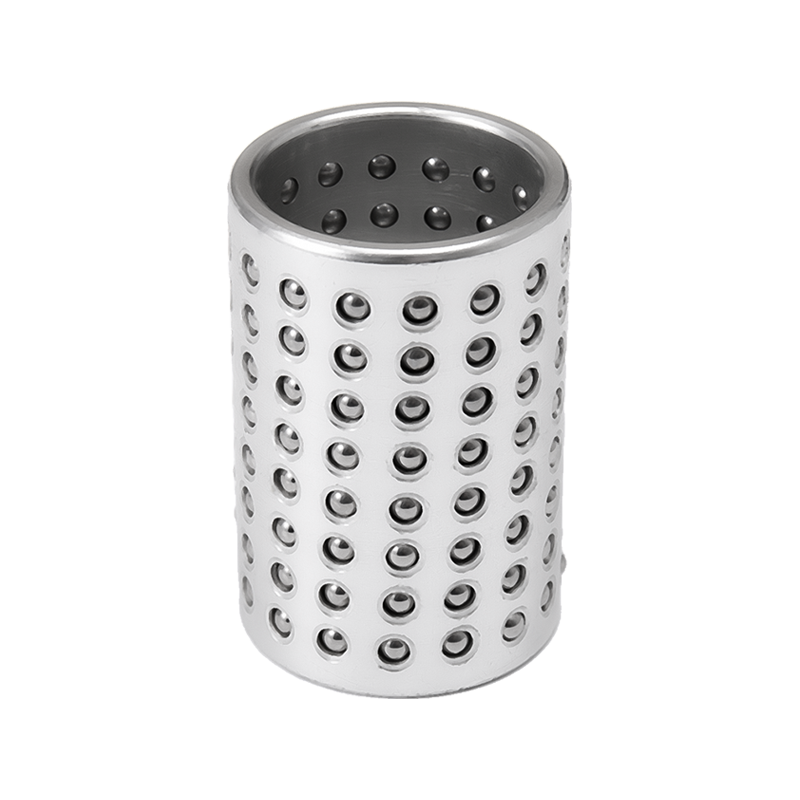

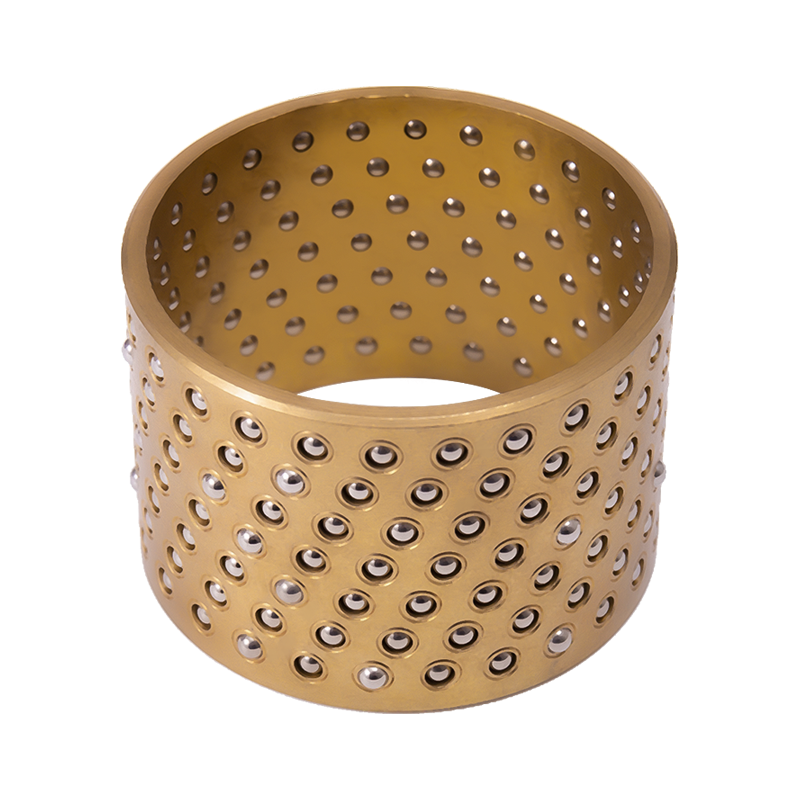

FZH.FZL.FZP.ball retainer are as copper, aluminium, POM base. They are machined some regular holes and embedded the steel-ball into. The new work-craft will prevent the ball getting out of as old. as the ball diameter is larger than the retainer thickness, so it will face to face directly with 90° guide bushing, that will bring high precision match now the ball retainer series items are designed to rotate on the post, as well as maintain its vertical motion. we believe this will give you the benefit of increasing accijracy.

Advantage And Use

As the traditional work-craft has some grudge between bushing with posts, and the coefficient of friction is larger. now we have changed the work-ways to steel-ball directly face to face guide bushing.so the precision is improved. it composes of both active roll and lower friction coefficient, now they have been widely used in punching machine, die machine, high precision machine which need rotation and vertical motion.

Installed Spares Requested

1. GUIDE BUSHING:MATERIAL GCrI5,YB9,HEAT TREAMENT HRC62-66,TECHNIQUE CONDITION ACCORDING TO GB/T12446.REQUEST 0.01-0.02mm THE SURFACE ROUGHNESS IS
2. GUIDIE POSTS:MATRIALGCrI5,YB9,HEA THE SURFACE ROUGHNESS IS

3. SIZE TEST: IT IS TESTED BY OUTSIDE MICROMETER & DIAL GAUGE AS USUAL.THE Ymax (Ymax+2d' -Dmin) REQUEST 0.01-0.02mm

Designation	D	H	d	EN	MN	BALLS	t	L
FZ(*)1950	19	50	3	12	8	96	5.5	5.75
FZ(*)1960	19	60			10	120		5.25
FZ(*)2050	20	50			8	96		5.75
FZ(*)2060	20	60			10	120		5.25
FZ(*)2250	22	50		14	8	112		5.75
FZ(*)2260	22	60			10	140		5.25
FZ(*)2360	23	60			10	208		5.25
FZ(*)2475	24	75		16	13	128		4.50
FZ(*)2550	25	50			8	112		5.75
FZ(*)2560		60			10	160		5.25
FZ(*)2575		75			13	208		4.50
FZ(*)2775	27	75			13	208		4.50
FZ(*)2860	28	60	4	14	8	112	6.5	7.25
FZ(*)2875	28	75			11	154		5.00
FZ(*)3060	30	60			8	112		7.25
FZ(*)3075	30	75			11	154		5.00
FZ(*)3260	32	60		16	8	128		7.25
FZ(*)3275		75			11	192		5.00
FZ(*)3390		90			13	208		6.00
FZ(*)3685	36	85			12	192		6.75
FZ(*)3690	36	90	5		13	208	8.0	6.00
FZ(*)3870	38	70			8	128		7.00
FZ(*)3890	38	90			11	176		5.00
FZ(*)4090	40	90			11	176		5.00
FZ(*)4590	45	90		18	11	198		5.00
FZ(*)45110	45	110		18	13	234		7.00
FZ(*)5090	50	90		20	11	220		5.00
FZ(*)50110	50	110		20	13	260		7.00
FZ(*)6090	60	90		22	11	242		5.00
FZ(*)60110	60	110		22	13	286		7.00
FZ(*)80130	80	130		28	15	420		9.00
