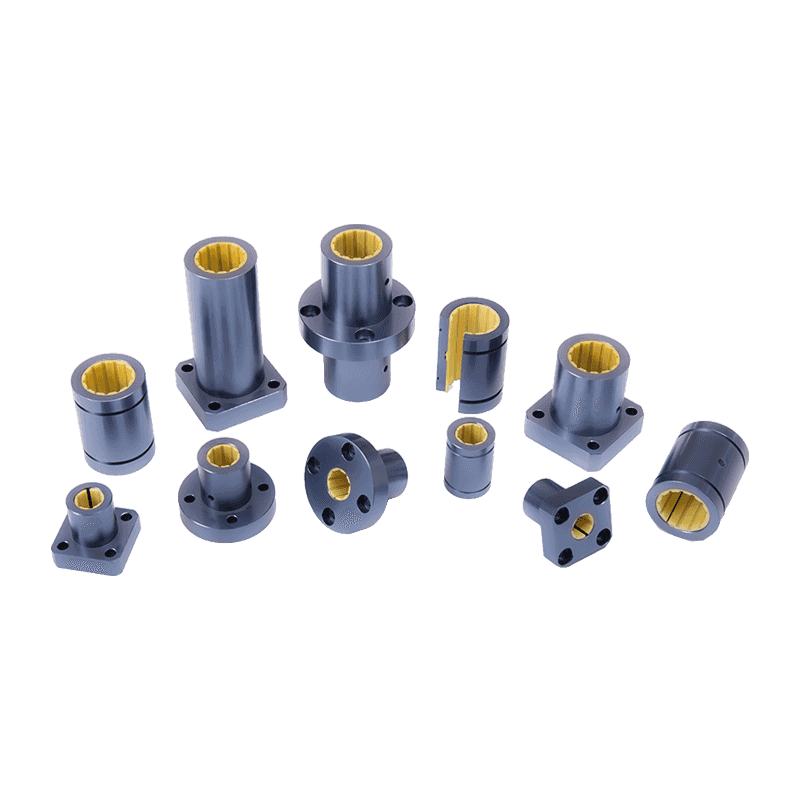

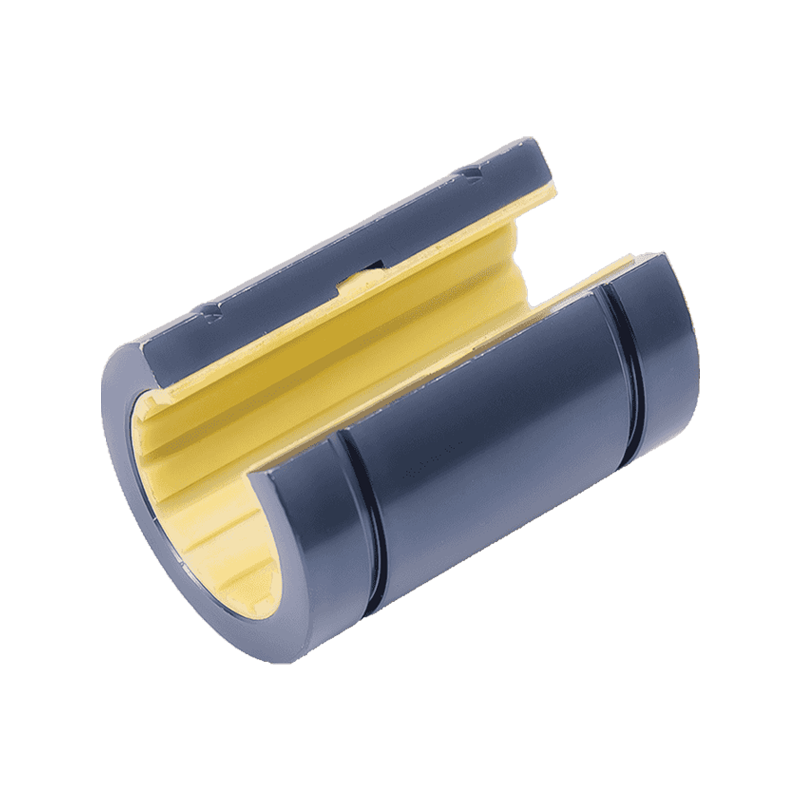

HZ-LIN Engineering plastic linear sliding bearing

The HZ-LIN Engineering Plastic Linear Sliding Bearing is engineered to deliver smooth, low-friction linear motion in environments demanding high speed, minimal maintenance, and resistance to contaminants. Utilizing a proprietary blend of fiber-reinforced engineering plastics and embedded solid lubricants, this bearing ensures consistent performance under dynamic loads while eliminating the need for external lubrication.

Design Advantages:
Self-Lubricating Mechanism: Lubricant particles stored in a fiber-matrix network are released during motion, forming a protective film across the sliding surface.
High PV Tolerance: Supports continuous PV values up to 1.8 MPa·m/s, ideal for reciprocating or high-frequency linear systems.
Corrosion & Chemical Resistance: Immune to oils, acids, and alkalis, suitable for chemical processing or marine environments.
Thermal Stability: Operates reliably between -30°C to 130°C with minimal thermal expansion.

Contaminant Management:
Dry-running capability prevents particle buildup; ideal for dusty or greaseless environments.
Self-cleaning design expels soft contaminants (e.g., fibers, paper debris).
Compliance & Testing
Meets ISO 3547-1 standards for wear resistance and load durability.
Validated through accelerated life testing (1 million cycles) under 30 MPa radial load.
Chemically compliant with EU RoHS and REACH directives.
