HZ-LIN Engineering plastic bearing sliding film Custom

Home / Products / HZ-EP Engineering plastic bearing / HZ-LIN Engineering plastic bearing sliding film
HZ-LIN Engineering plastic bearing sliding film

HZ-LIN Engineering plastic bearing sliding film

The HZ-LIN Engineering Plastic Bearing Sliding Film is crafted from advanced fiber-reinforced polymers embedded with solid lubricants, ensuring exceptional wear resistance and maintenance-free operation. Its optimized blend of base resin, reinforcing fibers, and micro-encapsulated lubricant particles enables consistent friction reduction across varying loads and speeds.

Material: High-strength engineering plastic matrix (e.g., POM, PA66) with embedded solid lubricants (PTFE, graphite).

Design:
Self-lubricating via controlled release of lubricant particles under motion.
Corrosion-resistant, chemical-inert, and immune to dust ingress.
Lightweight with high compressive strength (up to 120MPa static load).

Performance:
Low friction coefficient (μ=0.05–0.15) across -40°C to 120°C.
Excellent PV value (≤1.5 MPa·m/s) for dynamic applications.
Absorbs hard contaminants without compromising surface integrity.
Applications: Conveyor systems, packaging machinery, agricultural pivots, and low-speed rotary joints.

  • HZ-LIN Engineering plastic bearing sliding film
contact us
PREV：HZ-LIN Sealed engineering plastic bearing sliding filmNEXT：HZ-LIN Precision engineering plastic bearing

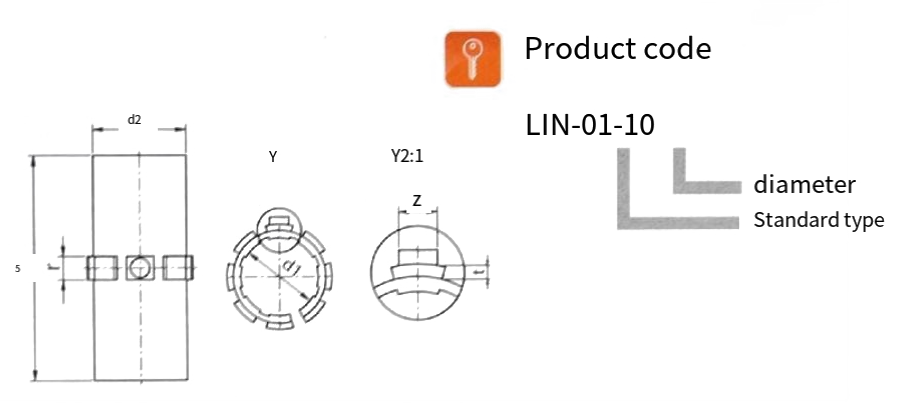

Size: mm

Product code

d1

Public errand

d2

b1

r

t

Z

F Maximum value

Dynamics

P=5MPa(N]

F Maximum value

Static

P=35MPa[N]

Weight g

LIN-01-10

10

+0.030+0.070

12

28

3

0.8

2.5

725

5075

1.10

LIN-01-12

12

+0.030+0.070

14

31

3

0.8

3

960

6720

1.50

LIN-01-16

16

+0.030+0.070

18

35

3.5

0.8

3.5

1440

10080

2.20

LIN-01-20

20

+0.030+0.070

23

44

5

0.8

3.5

2250

15750

4.90

LIN-01-25

25

+0.030+0.070

28

57

5

0.8

4

3625

25375

8.23

LIN-01- 30

30

+0.040+0.085

34

67

5

0.8

4

5100

35700

14.95

LIN-01-35

35

+0.040+0.085

39

69

5

0.8

4

7300

51000

18.20

LIN-01-40

40

+0.040 40.085

44

79

6

1.3

5

8000

56000

23.16

LIN-01-50

50

+0.050+0.100

55

99

7

1.3

6

12500

87500

45.35

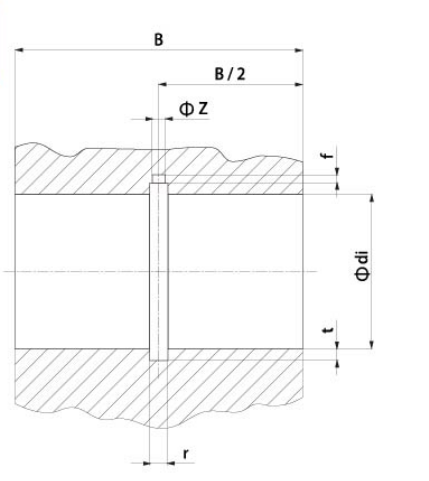

Assembly drawing test for the base hole of sliding film LIN-01
Size: mm

Product code

Axle Φ

di

H7

B

h10

r

t

f

z

LIN-01-10

10

12

29

3

1.0

1.0

2.6

LIN-01-12

12

14

32

3

1.0

1.5

3.1

LIN-01-16

16

18

36

3.5

1.0

1.7

3.6

LIN-01-20

20

23

45

5

1.0

2.0

3.6

LIN-01-25

25

28

58

5

1.0

2.0

4.1

LIN-01-30

30

34

68

5

1.0

2.0

4.1

LIN-01-35

35

39

70

5

1.0

2.0

4.1

LIN-01-40

40

44

80

6

1.5

2.5

5.1

LIN-01-50

50

55

100

7

1.5

2.5

6.1
