HZ-LIN Precision engineering plastic bearing Custom

Home / Products / HZ-EP Engineering plastic bearing / HZ-LIN Precision engineering plastic bearing

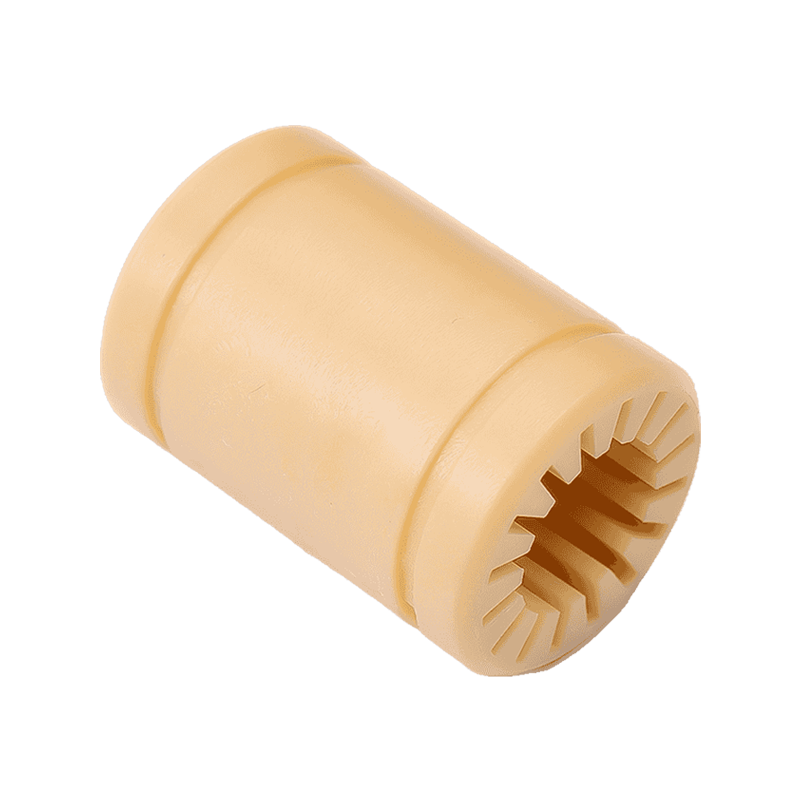

HZ-LIN Precision engineering plastic bearing

HZ-LIN Precision engineering plastic bearing

Engineered for high-precision assemblies, the HZ-LIN Precision Bearing features ultra-low dimensional tolerances (±0.02mm) and a smooth bore finish. Its low moisture absorption (<0.5%) ensures stability in humidity-controlled environments like medical devices, optical equipment, or robotics.

Highlights
Minimizes "stick-slip" phenomena through optimized surface roughness (Ra ≤0.8μm).
Compatible with H7 tolerance housings for press-fit installation.
Ideal for oscillatory or micro-motion systems requiring minimal backlash.

  • HZ-LIN Precision engineering plastic bearing
  • HZ-LIN Precision engineering plastic bearing
  • HZ-LIN Precision engineering plastic bearing
contact us
PREV：HZ-LIN Engineering plastic bearing sliding filmNEXT：No next product

Easy to install with minimal pressure
Reduce bearing clearance

Size: mm

Product Code

Axis

tolerance

The maximum

value of F dynamic

P=2.5MPaN

F maximum value

static state

P=17.5MPa[N]

weight g

LIN-00-06

6

+0.000+0.030

200

1400

 2

LIN-00-08

8

+0.000+0.040

250

1750

 4

LIN-00-10

10

+0.000+0.040

363

2538

 7

LIN-00-12

12

+0.000+0.040

480

3360

 9

LIN-00-16

16

+0.000+0.040

720

5040

 13

LIN-00-20

20

+0.000+0.040

1125

7875

24

LIN-00-25

25

+0.000+0.050

1813

12688

47

LIN-00-30

30

+0.000+0.050

2550

17850

72

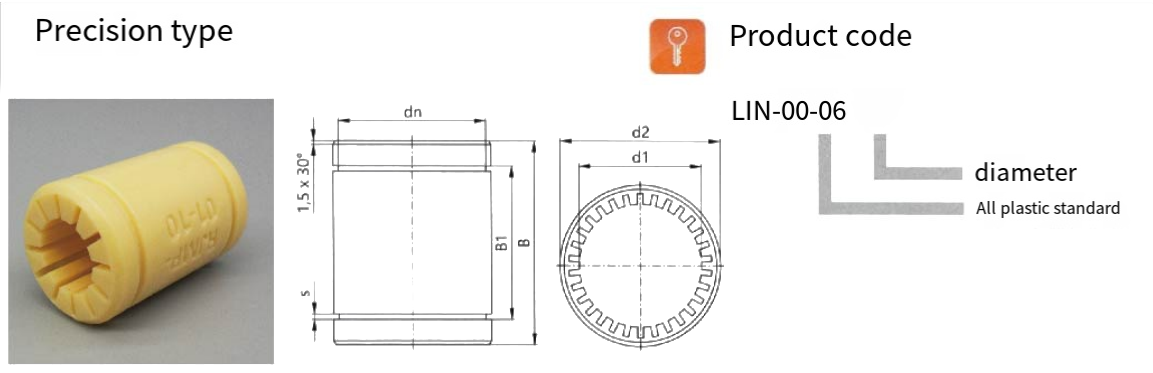

Product Code

d1

D2

B

B1

S

dn

LIN-00-06

6

12

19

13.5

1.10

11.5

LIN-00-08

8

16

25

16.2

1.10

15.2

LIN-00-10

10

19

29

21.6

1.30

17.5

LIN-00-12

12

22

32

22.6

1.30

20.5

LIN-00-16

16

26

36

24.6

1.30

24.2

LIN-00-20

20

32

45

31.2

1.60

29.6

LIN-00-25

25

40

58

43.7

1.85

36.5

LIN-00-30

30

47

68

51.7

1.85

43.5
