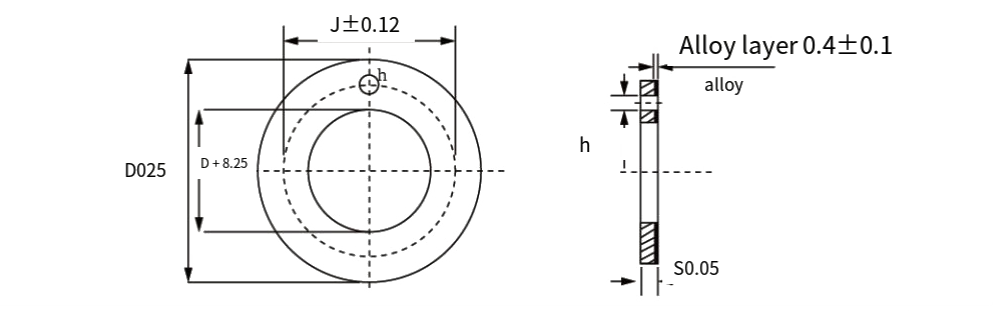

Φd2 +0.25 |
ΦD0-0.25 |
St 0-0.25 |
ΦJ±0.12 |
Φh+0.1+0.4 |
|
12 |
24 |
1.5 |
18 |
1.5 |
|
14 |
26 |
20 |
2 |
|
|
16 |
30 |
22 |
||
|
18 |
32 |
25 |
||
|
20 |
36 |
28 |
3 |
|
|
22 |
38 |
30 |
||
|
24 |
42 |
33 |
||
|
26 |
44 |
35 |
||
|
28 |
48 |
38 |
4 |
|
|
32 |
54 |
43 |
||
|
38 |
62 |
50 |
||
|
42 |
66 |
54 |
||
|
48 |
74 |
2 |
61 |
|
|
52 |
78 |
65 |
The Designing of Oil Indentation
In order to fully lubricate the bush when in the performance, the size of Inbrication hole as follows are recommended.
The lubrication hole should be away from butt joint and loading aera and designed to be easy oil feeding as well.
|
O.D. |
14~22 |
22~40 |
40~50 |
50~100 |
100~180 |
|
Lubrication hole (mm） |
3 |
4 |
5 |
6 |
7 |
Thickness of ZH Bearing
|
Nominal Thickness of |
1 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | 5 |
|
Thickness of Steel Baking |
0.6 | 1 | 1.4 | 1.9 | 2.3 | 2.8 | 3.2 | 4 |
|
Thickness of Bronze layer |
0.4 | 0.5 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 1.0 |
|
Manufacturable wall Thickness |
1+0.15+0.25 | 1.5+0.15+0.25 | 2+0.15+0.25 | 2.5+0.15+0.25 | 3+0.15+0.25 | 3.5+0.15+0.25 | 4+0.15+0.25 | 5+0.15+0.25 |
|
Manufactured wall Thickness |
1-0.25 | 1.5-0.03 | 2-0.035 | 2.5-0.04 | 3-0.04 | 3.5-0.05 | 4-0.055 | 5-0.06 |
We will reply to you within 12 hours of the working day.
Huazhou specializes in self-lubricating bearing products research and development, production, sales, and service as one of the large comprehensive enterprises.
Huazhou is equipped with high-end R&D equipment and personnel, and has over 200 sets of equipment of various sizes, including coiling machines, punching machines, fully automatic chamfering machines, fully automatic coiling machines, raw material sintering lines, etc. It is also equipped with thousands of sets of grinding tools, and the production efficiency of its products has reached a new height. Samples are produced in 3 days, with a daily output of 500000 pieces and an annual output of hundreds of millions of pieces.
The introduction of more than 260 special equipment, equipped with tens of thousands of molds, more than 150 professionals, and 30 automatic production lines.
Our product sales in various provinces in China, and widely used in various machinery industries, Volkswagen, BYD, etc., and with international standards, exports to Russia, Malaysia, Tasania, Iraq, Romania and other 16 countries.
