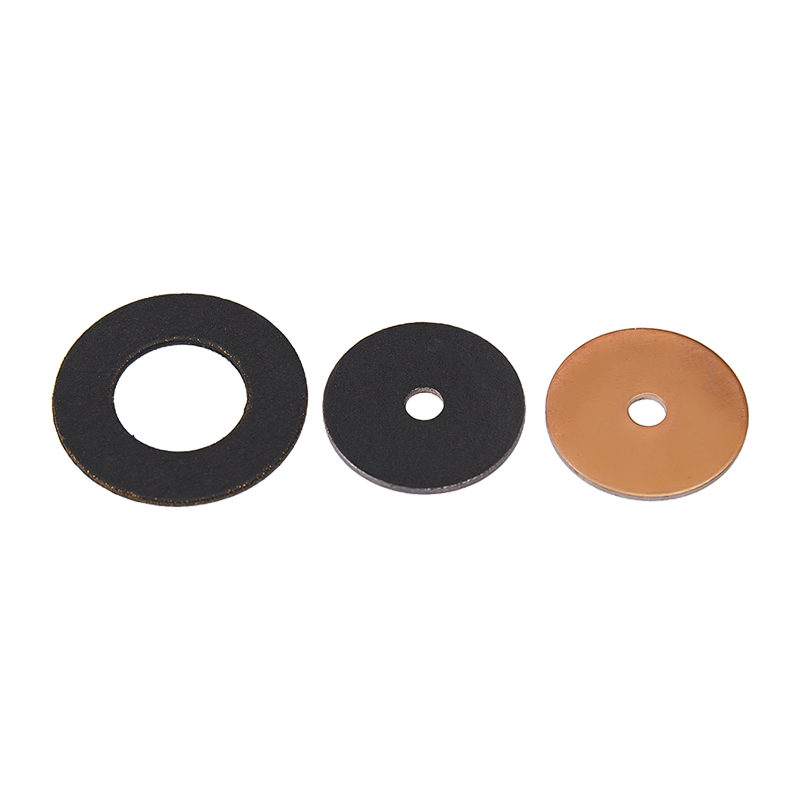

1WC Wear-resistant thrust washer

1WC Wear-resistant thrust washer

The 1WC Wear-Resistant Thrust Washer delivers reliable performance in high-load, high-speed systems prone to abrasive wear. Constructed from heat-treated alloy steel with a sintered bronze or ceramic composite surface layer, it minimizes metal-to-metal contact and distributes axial loads evenly across mating surfaces.

Key Features
Material: Alloy steel base with anti-friction coating (sintered bronze or ceramic-enhanced layer).
Design: Grooved or dimpled surface to retain lubrication; precision-ground thickness for uniform load distribution.
Performance: Supports dynamic axial loads up to 200MPa; resistant to galling and pitting.
Applications: Suited for industrial gear drives, heavy machinery turntables, wind turbine pitch systems, and mining equipment exposed to extreme friction.

Benefits
Reduces downtime by withstanding abrasive particles and shock loads.
Compatible with grease, oil, or dry lubrication methods.
Surface treatments enhance corrosion resistance in humid or acidic environments.

  • 1WC Wear-resistant thrust washer
contact us
PREV：800WC Lubricating oil hole thrust washerNEXT：1DWC Sealed thrust washer


Axle		 Designation Washer Dimension Installation Size
d+0.25 D-0.25 T-0.05 M±0.125     +0.40  10+0.10 t±0.20 D1+0.12
8  WC10 10  20  1.5  15  1.5  20
10  WC12 12  24  18  24
12  WC14 14  26  20  2.0  26
14  WC16 16  30  23  30
16  WC18 18  32  25  32
18  WC20 20  36  28  3.0  1.0  36
20  WC22 22  38  30  38
22  WC24 24  42  33  42
24  WC26 26  44  35  44
26  WC28 28  48
2.0		 38  4.0  48
30  WC32 32  54  43  54
36  WC38 38  62  50  62
40  WC42 42  66  54  66
46  WC48 48  74  61  1.5  74
50  WC52 52  78  65  78
60  WC62 62  90  76  90

HZ10/HZ20 Strip Standard Metric Size

Unit: mm

Code number

Length (L) ±1

Width (W) ± 1

Wall thickness (T) - 0.05

HZ10/HZ20

500

150

1.0

HZ10/HZ20

500

150

1.5

HZ10/HZ20

500

150

2.0

HZ10/HZ20

500

150

2.5
