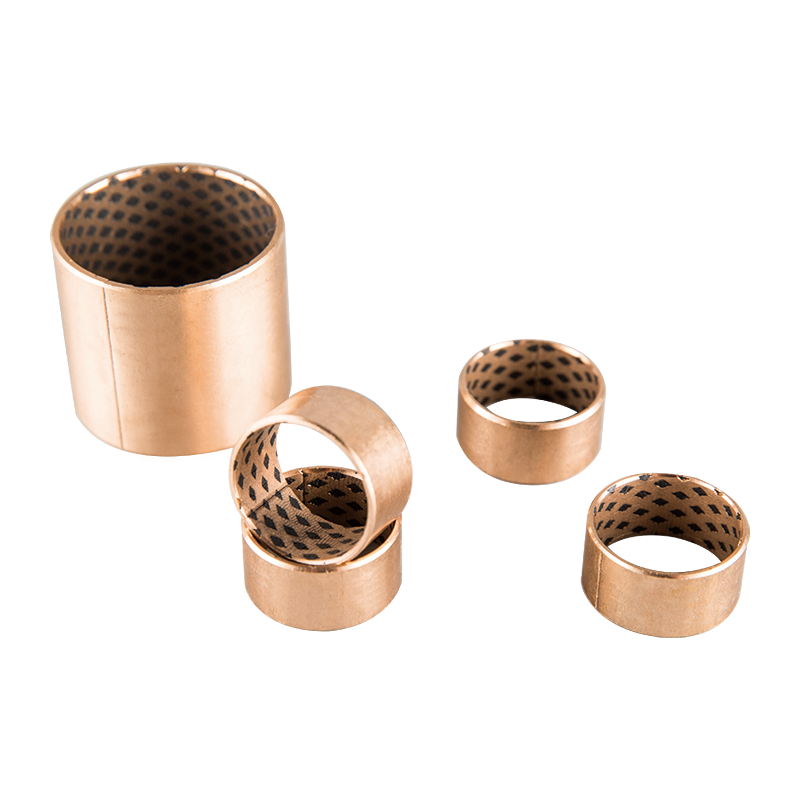

HZ09G Bronze rolled bimetallic composite bearing

Home / Products / HZ-090 single metal copper sleeve / HZ09G Bronze rolled bimetallic composite bearing
HZ09G Bronze rolled bimetallic composite bearing

HZ09G Bronze rolled bimetallic composite bearing

Product Overview

The same produce process and application except overlay the solid lubricants into the diamond shaped lubrication indents on the bearing surface, which will offer good friction at the start and process works and keep good condition even no oil giving at short time. So can be used in construction machines, gears. automotive clutch pads etc.

Availability

Cylindrical bushes. thrust washers. strip and non-standard parts as the clients supplied drawing etc.

Tolerance

Recommend housing tolerance H7 and the shaft as f7.

Application scope

Therefore, the products used in automotive drive shaf within the sleeve to use as a wear-resistant, oil-free lubrication can also be other occasions.

Technical Date

Performance index

Data

Materil

CuSn6.Pb0.1+Graphite

P Max. Load Capacity P

65N/mm²

Working Temperature

260℃

Friction Coef μ

0.06~0.20

Speed limit V

4m/s
