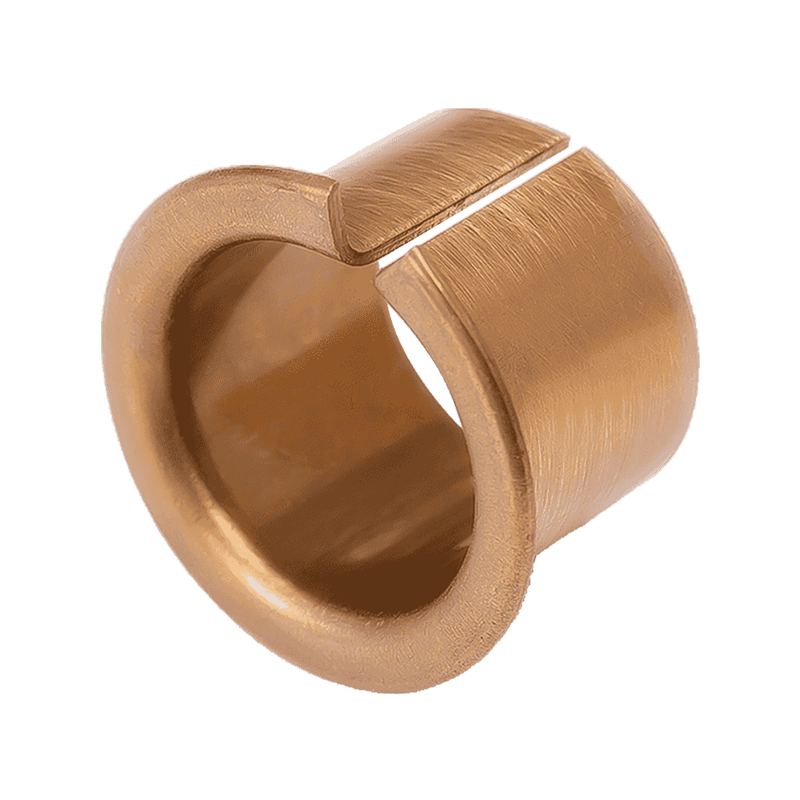

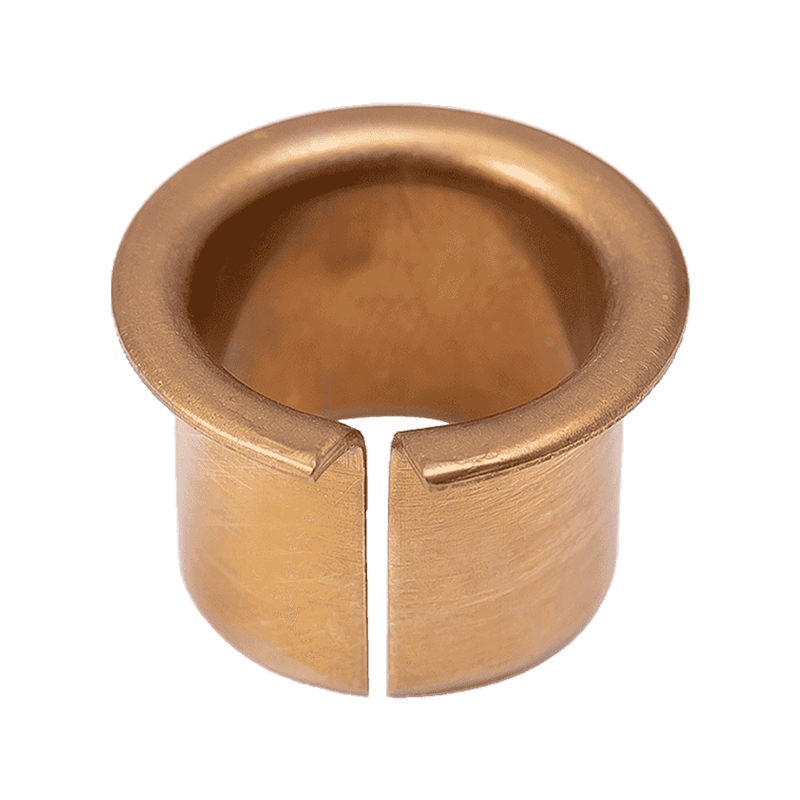

HZ093 Bronze flanged bushing

Home / Products / HZ-090 single metal copper sleeve / HZ093 Bronze flanged bushing
HZ093 Bronze flanged bushing

HZ093 Bronze flanged bushing

The HZ093 Bronze Flanged Bush combines a solid bronze construction with a flanged edge for stability in dusty, wet, or high-temperature settings. Its smooth bore and corrosion-resistant material suit low-to-medium load applications like conveyor rollers, hydraulic linkages, or marine equipment. The flange simplifies installation and prevents axial drift, reducing maintenance in repetitive-motion systems.

Application Characteristics

High material density, wear resistance, fatigue resistance, and excellent thermal conductivity

Suitable for low to medium load, low-speed, and high-temperature environmental conditions

Applied to buildings, agriculture, automotive braking systems, etc

CuZn31Si (H62 or H68) brass rolling oil hole

Technical Parameter

Characteristic indicators

Unit

Dry friction

Maximum dynamic load

Mpa

90

Operation temperature

-40~ +150

Maximum linear speed

m/s

1.5

Maximum PV value

m/s·Mpa

1.65

Minimum hardness of the product

HB

80~120

Welcome To Huazhou Zirun
The company was founded in August 2010, in 2019 developed into Zhejiang Huazhou Technology Co., Ltd., specializing in self-lubricating bearing products research and development, production, sales, and service as one of the large integrated enterprises. Since the beginning of its establishment, it has always adhered to the professional development road and won the market with its leading technical level, excellent product quality, and high-quality service concept. The factory is located in the Jiangnan water town - Nanxun, with an investment of 100 million yuan, a production area of 3W square meters, the introduction of more than 280 sets of special equipment, equipped with 100,000 mold, more than 150 professionals, and 50 automatic production lines.
