HZ-JSP High hardness graphite slider

HZ-JSP High hardness graphite slider

HZ-JSP high-hardness graphite slider is made of high-purity graphite material, with excellent wear resistance and high-temperature stability. Its low friction coefficient and excellent self-lubricating performance enable it to maintain stable operation under high load and complex working conditions, and is widely used in metallurgy, machinery, chemical industry and other fields.

The graphite slider is precision machined, has high strength and good oxidation resistance, and performs stably in high temperature environment. It is suitable for various high-demand application scenarios, such as high-temperature furnace equipment, sliding guides and sealing components, to meet the needs of harsh working conditions.

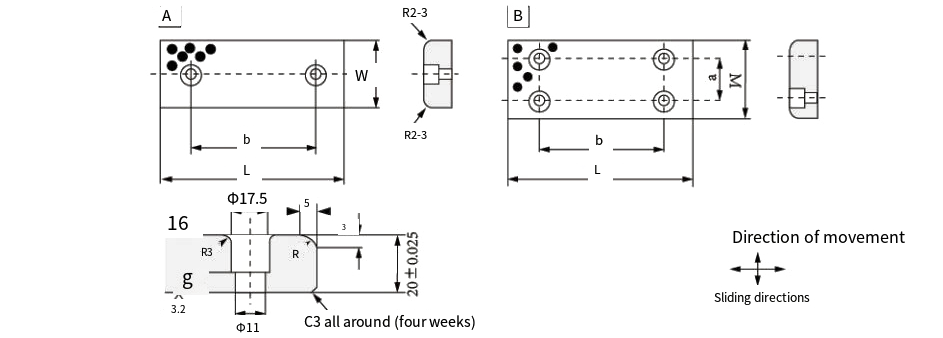

Designation

W

L

a

b

Sketch

JSP28x75

 28

75



45

 A

JSP28x100

100

-

50

JSP28x150

150



100

JSP38x75

 38

75



45

JSP38x100

100

-

50

JSP38x150

150



100

JSP48x75

 48

75



45

JSP48x100

100



50

JSP48x125

125

-

75

JSP48x150

150



100

JSP48x200

200



150

JSP58x75

 58

75



45

JSP58x100

100

-

50

JSP58x150

150



100

JSP75x75

 75

75



25

JSP75x100

100



50

JSP75x125

125

-

75

JSP75x150

150



100

JSP75x200

200



150

 B

JSP100x100

 100

100



50

JSP100x125

125



75

JSP100x150

150

50

100

JSP100x200

200



150

JSP100x250

250



200

JSP100x300

300



200

JSP125x125

 125

125



75

JSP125x150

150



100

JSP125x200

200

50

150

JSP125x250

250



200

JSP125x300

300



200

JSP125x350

350



200

JSP150x150

150

150



100

JSP150x200

200

100

150

JSP150x250

250



200
