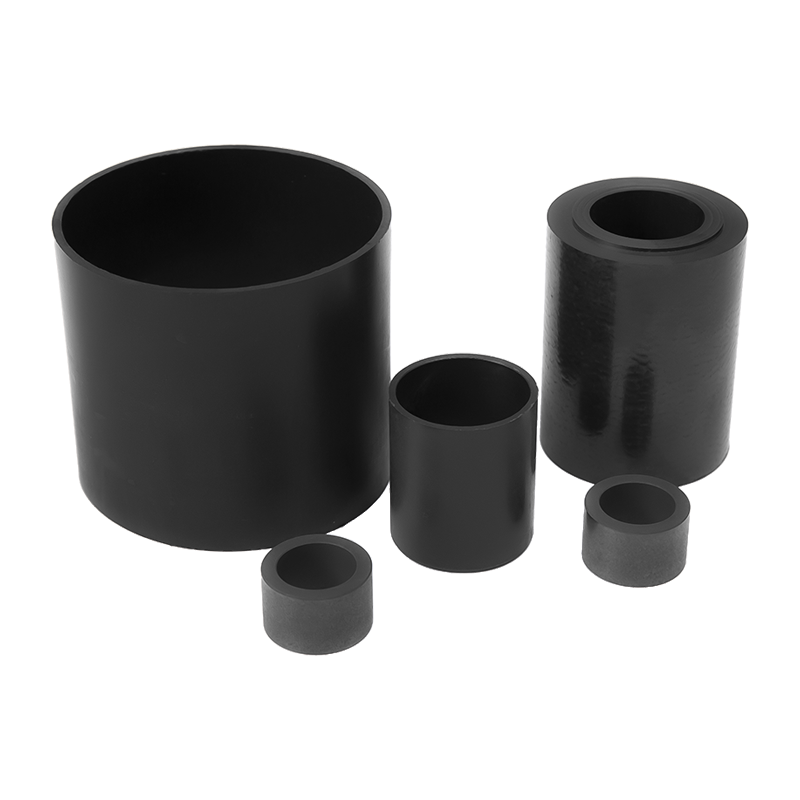

HZ-GSM Engineering plastic sliding bearing

The most popular G material in the world. The G series bearings can meet various different needs in a wide range of fields - they are truly versatile. Typical applications include mid to high end loads, moderate operating temperatures, and speeds.

Dry operation, maintenance free
Wear resistance
Resistant to dust and dirt
Low noise, pollution-free
high performance-price ratio

Suitable occasions:
Economic all-round bearing
Maintenance-free, dry operation
damping
High wear resistance
Resistant to dust and dirt
high performance-price ratio
Capable of withstanding moderate to high loads
Below-average operating speed
Used for swinging and rotating movements

Not applicable for:
When drilling holes on the wall surface is required
When excellent wear resistance is required
When universal chemical resistance is required
If the temperature remains above+130 ℃
Used for underwater applications

Table of material properties of plastic bearings

General performance		General purpose bearings	Fast and slow movement expert	The wall thickness is solid and shock-absorbing	All shafts of the marathon type are used	High-tech problem specialists are resistant to high temperatures	Low absorbency and economical	General purpose with high media resistance	Can come into contact with food	High-load applications
		G	J	M	In	X	P	H	A	Q
	density	1.46	1.49	1.14	1.24	1.44	1.58	1.71	1.46	1.4
	color	Dark gray	Yellow	Carbon black	Yellow	black	black	grey	white	black
	Maximum water absorption at 23°C/50% relative humidity [% weight]	0.7	0.3	1.4	1.3	0.1	0.2	0.1	0.2	0.9
	Maximum water absorption [% weight]	4.0	1.3	7.6	6.5	0.5	0.4	0.3	1.3	4.9
	Sliding friction coefficient against steel shaft [μ]	0.08- 0.15	0.06- 0.18	0.18- 0.40	0.08- 0.23	0.90- 0.27	0.06- 0.21	0.07- 0.20	0.05- 0.23	0.05- 0.15
	Maximum PV (dry run)	0.42	0.34	0.12	0.23	1.32	0.39	1.37	0.31	0.55
Mechanical properties	Modulus of elasticity [MPa]	7800	2400	2700	3500	8100	5300	12500	2300	4500
	Tensile strength at 20°C [MPa]	210	73	112	125	170	120	175	88	120
	Compressive strength [MPa]	78	60	52	61	100	66	81	78	89
	Allowable maximum surface static pressure (+20°C) [MPa]	80	35	20	60	150	50	90	28	100
	Shore D hardness	81	74	79	77	85	75	87	76	83
Physical and thermal properties	Maximum temperature in continuous operation [°C]	+130	+90	+80	+90	+250	+130	+200	+90	+135
	Maximum temperature during short operation [°C]	+220	+120	+170	+180	+315	+200	+240	+110	+155
	Minimum operating temperature [°C]	-40	-50	-40	-40	-100	-40	-40	-50	-40
	Thermal conductivity [W/m ·k]	0.24	0.25	0.24	0.24	0.6	0.25	0.6	0.25	0.23
	Coefficient of thermal expansion (at +23°C) [K-1 · 105]	9	10	10	9	5	4	4	11	5
Electrical conductivity	Volume resistivity [Qcm]	>10¹³	>10¹³	>10¹³	>10¹³	<10⁵	>10¹³	<10⁵	>10¹²	>10¹⁵
Electrical conductivity	Surface Resistance [2]	>10¹¹	>10¹²	>10¹¹	>10¹²	<10³	>10¹²	<10²	>10¹¹	>10¹²

The standard metric dimensions for sliding bearings comply with ISO3547-1 standard,s and special dimensions are provided

Type				Size
Material	Straight set	Metric system	Bearing	Inner meridian d1	Outer diameter d2	Length b
G	S	M	B	08	10	08
J	s	M	B	08	0	08
In	S	M	B	08	0	08
H	s	M	B	08	0	08
X	s	M	B	08	10	08
A	s	M	B	08	10	08

2) The relationship between chamfer and d1 2) Thickness<1mm, chamfer=20 °

d1(mm): C1-6 C6-12 C12-30 C>30

f(mm): 0.3 0.5 0.8 1.2

d1	d1 public errand E10	d2	Seat hole H7	b1

03	+0.054 +0.014	04.5	+0.015	03	05
04	+0.068 +0.020	05.5		04	06
05		07		05	08	10
06		08		06	08	10	15
08	+0.083 +0.025	10		06	08	10	12	15

10		12	+0.018	06	08	10	15	20
12	+0.102 +0.032	14		10	12	15	20
14		16		10	15	20	25
15		17		10	15	20	25
16		18		10	15	20
18		20	+0.021	15	20	25
20	+0.124 +0.040	23		10	15	20	25	30

22		25		15	20	25	30
25		28		15	20	30

28		32	+0.025	20	25	30
30		34		15	20	30	40
32	+0.150 +0.050	36		20	30	40
35		39		25	30	40
40		44		20	30	40	50
45		50		30	40	50
50		55	+0.030	20	30	40	50

55	+0.180 +0.060	60		40	50	60
60		65		30	40	50	60	70

65		70		30	50	60
75		80		40	60
80		85	+0.035				60	100
