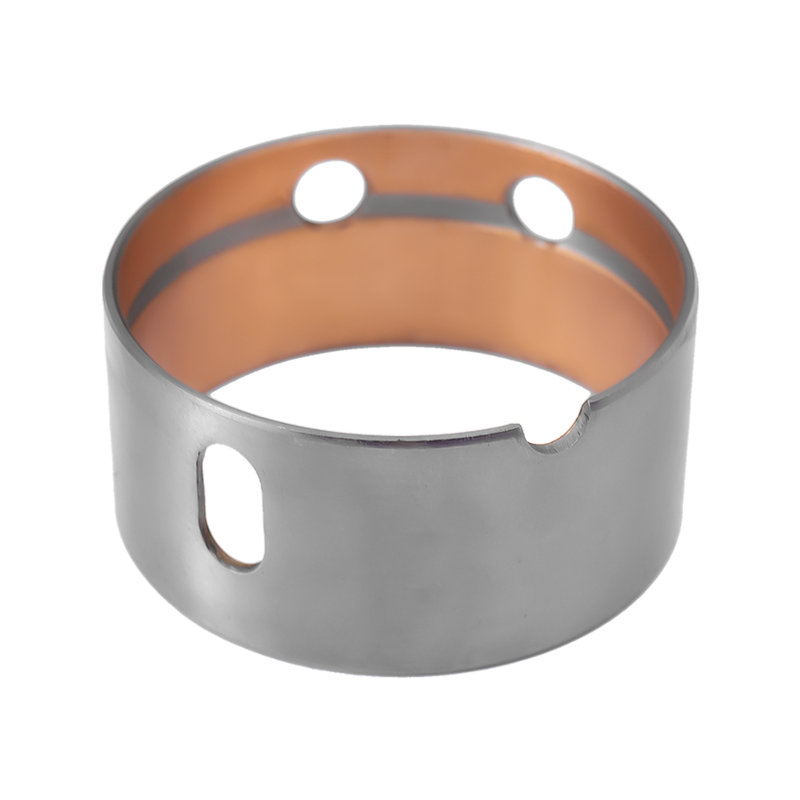

HZ801 Natural color smooth plate bimetallic composite bearing

The HZ801 Natural Finish Bimetal Composite Bearing is engineered to withstand extreme loads, high temperatures, and demanding operating conditions. Featuring a dual-layer construction—a durable steel backing fused with a high-density copper alloy surface—this bearing offers exceptional load capacity, thermal conductivity, and resistance to wear. Its uncoated "natural finish" design ensures quick break-in periods and stable friction performance, even under continuous heavy stress.

Ideal for applications requiring boundary or mixed lubrication, the HZ801 excels in environments with shock impacts, vibrations, or variable speeds. The copper alloy layer incorporates solid lubricants to provide backup lubrication during startup or intermittent operation, while the steel base enhances structural strength and heat dissipation. Resistant to corrosion, abrasion, and contamination, this bearing is widely used in construction machinery, mining equipment, marine engines, and industrial gear systems. Designed for minimal maintenance and long-term reliability, the HZ801 reduces downtime and extends equipment lifespan. Its compact, lightweight profile allows seamless integration into space-constrained assemblies without sacrificing durability.

Material Features

Steel-backed lead bronze-lined bearing material for lubricated applications, high load capacity and good fatigue properties, have been widely used in automotive, common industrial-like steering gear,power steering, pedal bushes,king-pin bushes,tallgate pivots, mechanical handling, lifting equipment, hydraulic motors, agricultural machines etc.

Specieications for HZ Steel-Lead Bronze alloys

Material Type	HZ800	HZ720	HZ700	Pb-free HZJ20	Pb-free HZ930
Specification of Bronze	CuPb10Sn10	CuPb24Sn4	CuPb30	AISn20Cu	CuSn6.5P0.1
Equivalent Code	AmericaSAE-797 GermanyGLYCO66 JapanJIS-LBC3 USA SAE-797 GERMANY GL-YCO66 JAPAN JIS-LBC3	AmericaSAE-799 GermanyGLYCO68 JapanJIS-LBC6 USA SAE-799 GERMANY GL-YCO68 JAPAN JIS-LBC3	AmericaSAE-48 JapanJIS-KJ3 USA SAE-48 JAPAN JIS-KJ3	AmericaSAE-783 GermanyGLYCO74 JapanJIS-AJL USA SAE-783 GERMANY GL-YCO74 JAPAN JIS-AJL
Hardness of Bronze alloy HB	70-100	45-70	30-45	30-40	60-90
Allowable Max Dynamic Load N/mm²	65	38	25	30	65
Harhness of mating surface	53HRC	50HRC	270HB	250HB	50HRC
Max.Temperature ℃	260	C	170	150	200
Application Characteristics	The strongest stype, wide application field, most suitable for high-impact vibrating load bushes and washers.	Relative high fatige strengh&load capaity, good sliding performance, poor oil corrosion resistance. Fit for middle load, middle speed. Normally applied in mainbushes of inner-combushtion engine, connecting rod when plated.	Good seizuring resistance, good capacity to submerge foreign, objects. Normally applied in main bearings of high speed. Low to morderate load inner-combustion engine &connecting rod bearing.	Moderate fatige strenth &load capacity good corrosion resistance, relative in half bushs of hlgh speed, low load inner combustion engine, aircompressor, refrigerator bearings,	The HZ930 bearing is a kind of product without lead, Relative high fatige strengh&load capaity, good sliding performance, whose application industry is gradually being expanded.
