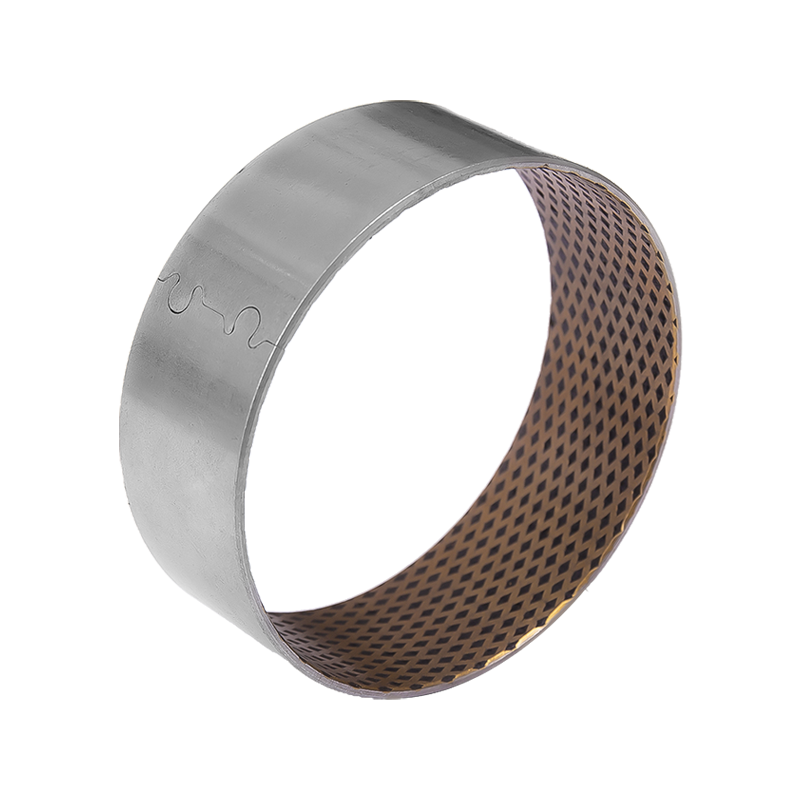

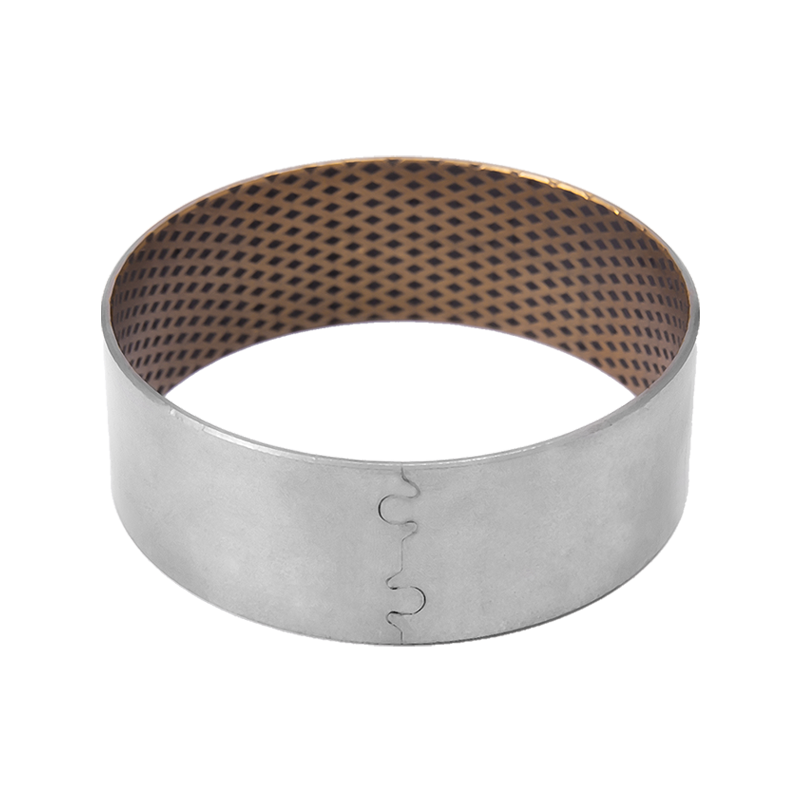

HZ08G Bimetallic graphite copper bushing

HZ08G Bimetallic graphite copper bushing

Product Overview

HZ08G is a kind of steel-lead bronze alloys based bearing, which is embedded with particular formulation of solid lubricants. Owing to the high strength, high load capacity and the spirally distributed diamond type of the embedded solid lubricant, the high temperature resistant action as extraordinary exploited. The lubrication area of the bearing surface is being about 25%. This type of bearing is particularly applied in starting motor for automobiles, generators cranes and those machines inmetallu rgical industry.

Application Scope

It is particularly used in gear box for automobiles, generators, lifters, cranes and machines for metallurgical industry.

Technical Date

Performance index

Data

Materil

CuSn6.Pb0.1+ Graphite

Max.Load Capacity P

65N/mm²

Working Temperature

260℃

Friction Coef μ

0.06~0.20

Speed limit V

4m/s
