HZ092 Brass oil groove monometallic copper bushing Suppliers, Company

HZ092 Brass oil groove monometallic copper bushing

Product Benefits

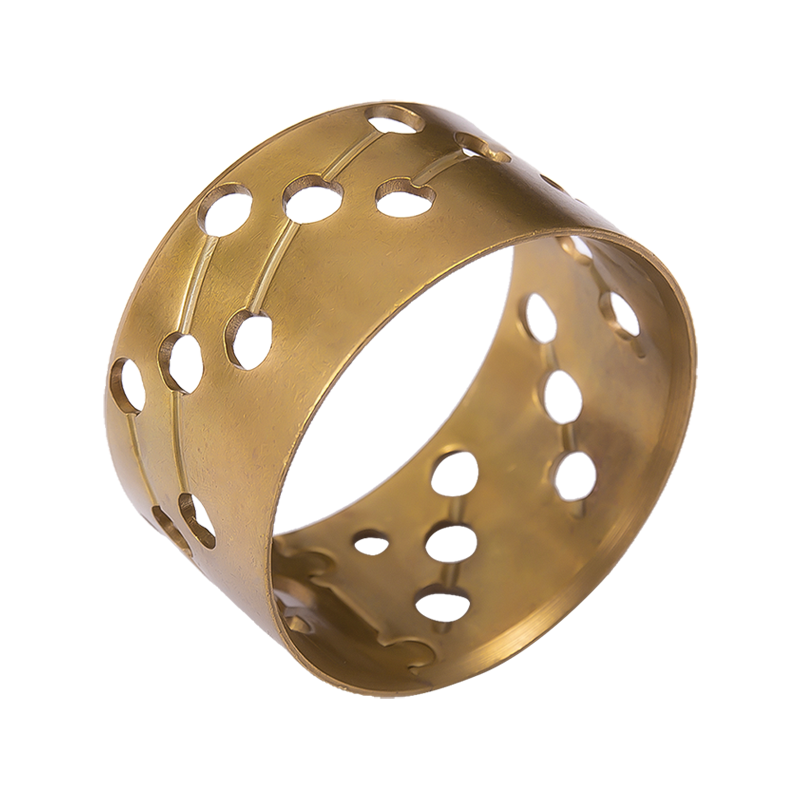

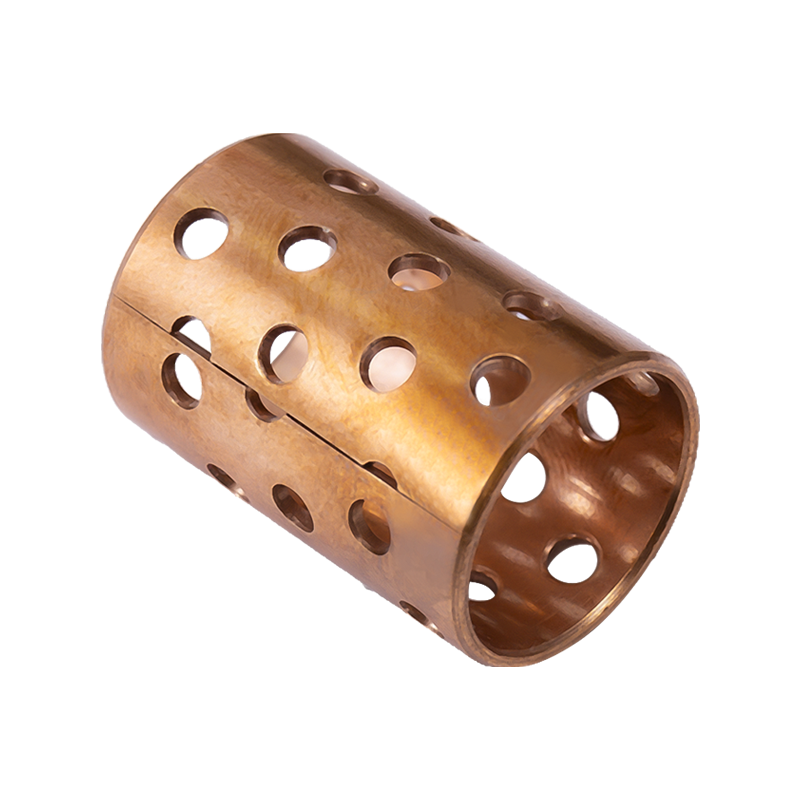

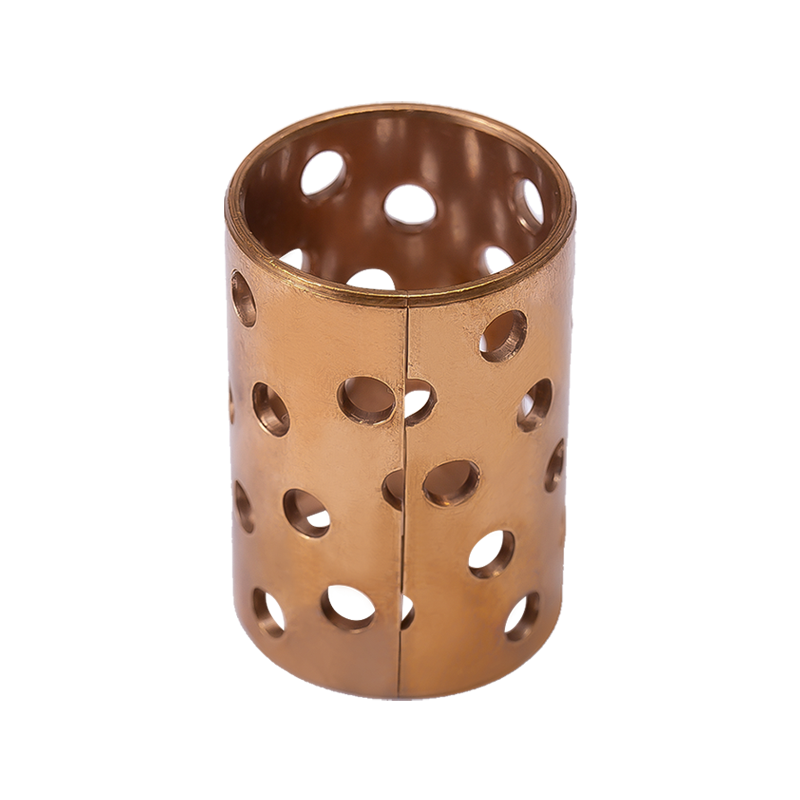

HZ092 bronze bearing is made of bronze with oil holes evenly distributed on it. When assemble it, the bearing. should be lubricated with grease before both ends of the bearing is Assembled with seals. FBo92 has the advantages of abundant oil storage, easy-to-assembly or easy to be machined etc. It can substitute bushings made by complete copper material, in addition. It suits for conditions of middle load and low speed including convey machine. Hoisting machine, windlass, aligning machine etc.

Application Characteristics

High material density, wear resistance, fatigue resistance, and excellent thermal conductivity

Suitable for low to medium load, low-speed, and high-temperature environmental conditions

Applied to buildings, agriculture, automotive braking systems, etc

CuZn31Si (H62 or H68) brass rolling oil hole

Technical Parameter

Characteristic indicators	Unit	Dry friction
Maximum dynamic load	Mpa	90
Operation temperature	℃	-40~ +150
Maximum linear speed	m/s	1.5
Maximum PV value	m/s·Mpa	1.65
Minimum hardness of the product	HB	80~120

Product Benefits

1. Saving large amount of bronze material and save the working hours normally spent for lathing the bronze bushing.
2. Compared with lathed bushings and roller bearings, it is lights and more cost-effective.
3. Various holes and dents can be made on the frication surface for grease storage. prolonging the lubrication interval to 5 times as long as required by the bronze bushing.
4. Extremely high load sustainabcility, especlally suitable for coarse abrasion surfaces. Standard products available: straight bushings. thrust plates and pressure bearings.
Non-standard products available: straight bushings. thrust plates, planks, bearing bushings. slide plates and steel bushing assembly.
