HZ-RFC High strength cloth-reinforced phenolic bearing

Material Introduction

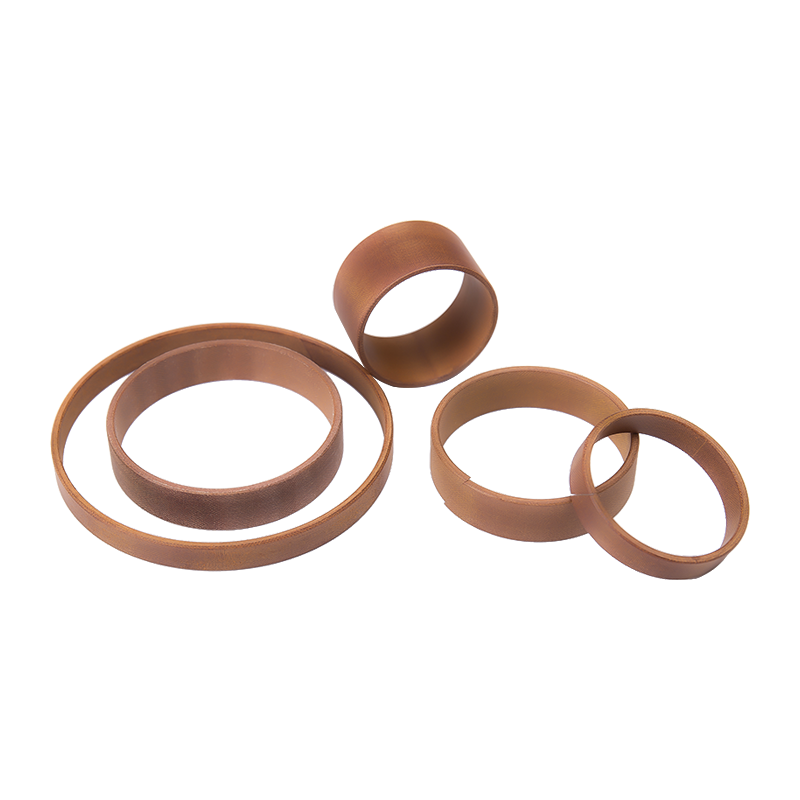

PFC-1 material is a high-strength load-bearing material that uses thermosetting linear phenolic resin as the substrate and high-quality cotton fiber fabric as the reinforcement material and is heat cured under certain temperatures and pressure. It has ha igh load-bearing capacity, good temperature resistance, wear resistance, and good dimensional stability. Suitable for hydraulic cylinder guide rings, support rings, construction machinery, swing bridge support bushings for construction vehicles, thrust washers, hydraulic machinery column guides, etc.

Typical applications

01 / hydraulic cylinder guide ring, support ring
02 / hydraulic machinery, forging machine tool column guide sleeve
03 / construction machinery, vehicle swing axle bracket bushing

Technical parameters

Model

color

Density (8/cmP)

Elongation Strength

(MPa)

compressive strength

Hardness

coefficient of friction

Operating Temperature

(°C)

Flat on the laminated surface

Perpendicular to the laminate surface

dry

Oil lubrication

PFC-1

Pale yellowish brown

1.2-1.4

≥45

≥168

≥256

0.23-0.46

0.12-0.14

-40~+130

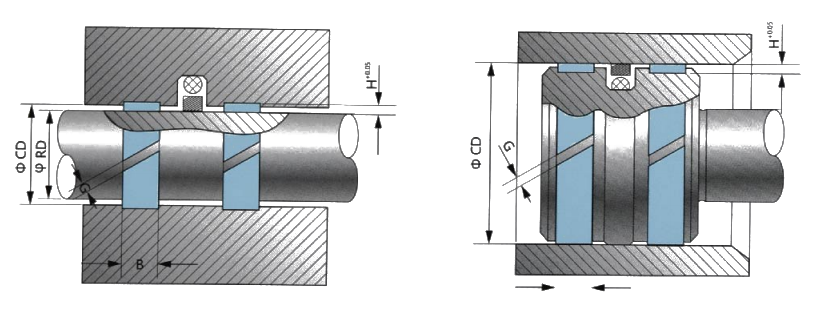

The hydraulic cylinder piston and piston rod support rings refer to the specification

Dimensions: mm

Material

Outer diameter tolerance CD

Inner diameter tolerance d

Wall thickness tolerance H

Width tolerance B

Incision OD CD

Incision G

Incision tolerances

PFC series

High-strength cloth guide rings

±0.1

≤100

±1

<100~≤200

±1

-0.05

-0.30

<200

±1

Material Introduction

PFC-2 material is a high-strength composite material formed by thermosetting at a certain temperature and pressure using soluble phenolic resin containing uniformly dispersed graphite and high-quality cotton fiber fabric. It has high mechanical strength, excellent friction and wear performance, good temperature resistance, and can withstand strong vibrations, impact loads, and mild rotational loads under semi-static conditions. It can work in a low oil or oil-free state and is suitable for engineering machinery, engineering vehicle swing bridge support bushings, forging press bed column guides, spherical bearings, etc.

Technical parameters

Model

Color

Density
(g/m.)

Tensile Strength
(MPa)

Compressive strength

hardness

Coefficient of friction

Operating Temperature

(°C)

Parallel to the laminated surface

perpendicular to the laminate surface

Dry

Oil lubrication

PFC-2

black

1.2-1.4

≥40

≥160

≥220

90-100

0.15-0.30

0.10-0.12

-40~+130

Typical applications

01/Ball valve, butterfly valve shaft sleeve
02/Plastic Machinery Green Column Guide Sleeve
03/Hydraulic Machinery Shaft Sleeve
04/Hydraulic machinery, forging machine column guide sleeve
05/Construction machinery, vehicle swing bridge bracket lining
06/Spherical bearings and marine bearing materials for marine engineering equipment

Material Introduction

This material is composed of synthetic fibers, reinforced polyester resin, and self-lubricating micro powders. Has low friction coefficient, high mechanical properties, and chemical corrosion resistance
It has a good performance and low water absorption.

Technical parameters

Model	Color	Density (g/m)	Compressive Strength (MPa)	Friction System (Dry Friction)	Operating temperature
					Minimum temperature	Minimum temperature
PFC-20	Green or white	1.2-1.4	330	0.13(use GB/T3960)	120	-40

Typical applications

01/Guiding ring
02/Bearings, shaft sleeves, and bearing shells
03/Shipbuilding and Marine Components
04/Construction Machinery Parts
05/Hydraulic power generation components
