1.1 What are Bimetal Composite Bearings?
Bimetal composite bearings are specialized components designed to provide superior performance under high-load and high-wear conditions. They are made by bonding two distinct metals to form a bearing surface that combines the unique properties of each material. Typically, the bearing consists of a steel backing layer for structural strength and a softer, wear-resistant material such as bronze or aluminum as the bearing surface. This combination allows bimetal composite bearings to offer the durability of steel along with the friction-reducing properties of softer metals.
The construction of these bearings is engineered to withstand harsh operating conditions, making them a reliable choice for a wide range of industrial applications. The two metals are typically bonded using methods such as cladding, diffusion bonding, or extrusion, ensuring a durable and effective bond between the layers.
1.2 Advantages of Using Bimetal Composite Bearings
Bimetal composite bearings come with several advantages that make them an ideal choice in various applications, from automotive to aerospace. Below are some of the key benefits:
High Load Capacity: The combination of a strong steel backing with a softer bearing surface allows these bearings to handle high loads efficiently. The steel backing provides the structural strength necessary to support heavy machinery and equipment.
Excellent Wear Resistance: The bearing surface, often made from materials like bronze or aluminum, offers excellent wear resistance. This characteristic makes bimetal composite bearings well-suited for applications where friction and wear are significant concerns.
Good Fatigue Strength: These bearings are designed to withstand repetitive loading cycles without failing, ensuring long-term durability even in challenging environments. Their ability to resist fatigue extends their lifespan in demanding applications.
Improved Corrosion Resistance: The materials used in bimetal composite bearings are selected for their resistance to corrosion, making them ideal for use in environments where exposure to moisture or other corrosive elements is a concern. For instance, bronze and aluminum alloys are highly resistant to rust and degradation.
1.3 Applications Across Industries
Bimetal composite bearings find their place in a variety of industries, thanks to their robust performance characteristics. Here are a few notable applications:
Automotive Industry: Bimetal composite bearings are commonly used in engine components, such as crankshaft and connecting rod bearings, as well as transmission components like bushings and thrust washers. Their high load capacity and resistance to wear make them ideal for withstanding the demanding conditions within an engine.
Industrial Machinery: In the heavy equipment sector, bimetal composite bearings are widely used in machinery such as construction equipment and mining machinery, where they support high loads and resist wear under harsh operating conditions. Additionally, they play a critical role in hydraulic systems, including pumps, motors, and cylinders.
Aerospace: In the aerospace industry, bimetal composite bearings are used in landing gear components and control surfaces. Their ability to function effectively under extreme temperatures and loads makes them a reliable choice for these critical applications.
Types of Bimetal Composite Bearings

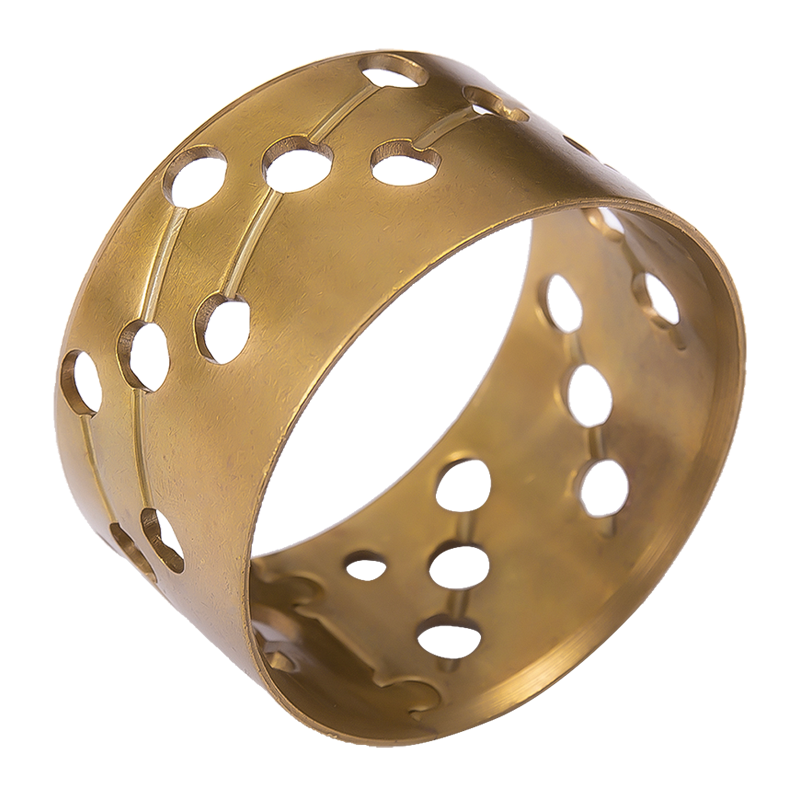

2.1 Steel-backed Bronze Bearings
Steel-backed bronze bearings are one of the most common types of bimetal composite bearings, especially in applications that require both high strength and excellent wear resistance. These bearings consist of a steel backing layer that provides structural support, while the bearing surface is made of a bronze alloy, typically composed of copper and tin.
Description and Properties
Bronze is chosen for its excellent tribological properties, which include high wear resistance, good antifriction characteristics, and resistance to corrosion. The steel backing offers the necessary strength to support heavy loads, while the bronze layer provides the self-lubricating properties essential for reducing friction between moving parts.
Common Applications
Steel-backed bronze bearings are often used in automotive applications such as engine bearings (crankshaft, connecting rod), where they can handle high loads and temperatures. They are also utilized in heavy machinery, such as construction and mining equipment, where durability and resistance to wear are critical.
2.2 Steel-backed Aluminum Bearings
Steel-backed aluminum bearings are another widely used type of bimetal bearing, offering distinct advantages in certain applications. These bearings use an aluminum alloy as the bearing surface, bonded to a steel backing for added strength.
Description and Properties
Aluminum alloys are lighter and more cost-effective compared to bronze, and they offer good corrosion resistance. However, aluminum has a lower wear resistance than bronze, making it suitable for applications where lower loads or less harsh conditions are encountered. The steel backing still provides the required strength to support the bearing structure.
Common Applications
Steel-backed aluminum bearings are frequently used in applications where weight savings are important, such as in the aerospace and automotive industries. For example, these bearings are commonly used in aircraft components, such as wing flaps and landing gear, as well as in transmission components where lighter weight is advantageous.
2.3 Other Material Combinations
While steel-backed bronze and aluminum bearings are the most common, there are also other, more specialized combinations of materials used in bimetal composite bearings. These include combinations with polymers, PTFE (Polytetrafluoroethylene), and other engineered materials to suit specific requirements.
Overview of Less Common but Specialized Bimetal Bearings
Steel-backed Polymer Bearings: These bearings are often used in low-load applications or where noise reduction is important. The polymer layer can be tailored to provide enhanced lubrication properties.
Steel-backed PTFE Bearings: PTFE is well-known for its low friction and excellent chemical resistance, making it a choice for applications in harsh or corrosive environments. These bearings are typically used in situations where high precision and minimal friction are critical.
While these material combinations are not as widespread as steel-backed bronze or aluminum bearings, they play an essential role in specialized applications where traditional bimetal bearings might not perform as effectively.
Materials Used in Bimetal Composite Bearings
3.1 Steel Backing
Steel is a fundamental material used in the construction of bimetal composite bearings due to its inherent strength, durability, and resistance to deformation under heavy loads. The steel backing provides the necessary structural support for the bearing, ensuring that it can withstand the mechanical stresses experienced in various applications.
Types of Steel Used (e.g., Carbon Steel, Stainless Steel)
Carbon Steel: Carbon steel is one of the most commonly used materials for the backing layer of bimetal composite bearings. It offers excellent strength, toughness, and cost-effectiveness, making it ideal for heavy-duty applications. However, it may be more susceptible to corrosion compared to stainless steel.
Stainless Steel: Stainless steel is another option, particularly when corrosion resistance is a key consideration. It provides enhanced durability and can operate in more demanding environments, such as marine or chemical applications. Stainless steel-backed bearings are typically more expensive but offer superior performance in harsh conditions.
Role of Steel in Providing Structural Support
The steel backing serves as the foundation of the bearing, offering resistance to deformation under high loads. It ensures that the bearing maintains its shape and function even under extreme pressure or stress, contributing to the overall reliability and longevity of the bearing in service.
3.2 Bearing Layer Materials
The bearing surface, which is made of softer metals or materials, is crucial for reducing friction and wear between moving parts. The choice of material for the bearing layer depends on the specific requirements of the application, including factors such as load, speed, and environmental conditions.
Bronze Alloys: Composition and Properties
Bronze is one of the most widely used materials for the bearing layer in bimetal composite bearings. Bronze alloys typically consist of copper, tin, and other elements, such as phosphorus or lead, to improve specific properties. The composition of the alloy determines the bearing's resistance to wear, corrosion, and fatigue.
Properties: Bronze offers excellent wear resistance, good friction characteristics, and corrosion resistance. It is ideal for applications involving high loads and where lubrication is not always available or efficient.
Aluminum Alloys: Composition and Properties
Aluminum alloys are another popular choice for the bearing layer in bimetal composite bearings, especially when weight reduction is a priority. Aluminum alloys are lighter than bronze and exhibit good corrosion resistance. They are often used in aerospace and automotive applications where reducing the overall weight of components is critical.
Properties: Aluminum alloys typically have lower wear resistance than bronze, but their low friction coefficient and good thermal conductivity make them suitable for specific, less demanding applications.
Other Materials: Polymers, PTFE
In some cases, polymers or PTFE (Polytetrafluoroethylene) are used as bearing layer materials. These materials are often chosen for their low friction, high chemical resistance, and self-lubricating properties.
Polymers: Polymers such as POM (Polyoxymethylene) are used in applications requiring low friction and noise reduction. These materials can perform well in lighter load applications or where specific operating conditions (like extreme temperatures) are present.
PTFE: PTFE is often used in bearings that need to operate with minimal lubrication or in environments where lubricants are not feasible. It is chemically inert and has excellent resistance to a wide range of harsh substances, making it ideal for use in the chemical or food processing industries.
3.3 Coatings and Surface Treatments
In addition to the choice of materials, coatings and surface treatments are often applied to the bearing layers to further enhance their performance. These treatments can improve wear resistance, reduce friction, and offer better corrosion protection.
Hard Chrome Plating: This is a common surface treatment used to improve the wear resistance of bearing surfaces, particularly in high-load applications.
Nickel Coating: Nickel coatings are often applied to provide corrosion resistance in more aggressive environments, such as marine or chemical processing.
Ceramic Coatings: In specialized applications, ceramic coatings are used to enhance the hardness and wear resistance of the bearing surface.
Design Considerations for Bimetal Composite Bearings
4.1 Bearing Dimensions and Tolerances
The design of bimetal composite bearings requires careful attention to their dimensions and tolerances to ensure proper fit and function within the machinery or equipment. Precision in these aspects is essential for the bearing to perform efficiently, minimize wear, and prevent premature failure.
Importance of Precise Dimensions
Precise bearing dimensions ensure that the bearing fits correctly in its housing or support structure, providing the necessary support and stability for the moving components. Incorrect dimensions can result in poor alignment, excessive friction, or uneven load distribution, all of which can lead to premature wear or failure.
Standard Tolerance Classes
Bearings are manufactured to specific tolerance classes to ensure uniformity and consistency in their dimensions. These tolerance classes are designed to account for variations in manufacturing processes while maintaining the required fit. Standard tolerance classes include:
H7 tolerance: Commonly used for shaft and hole fits in medium-precision applications.
P6 tolerance: Used for higher-precision applications where tighter fits are required.
C5 tolerance: Typically used in very high-precision applications, such as aerospace and high-speed machinery.
The choice of tolerance class depends on the specific application and the operational requirements of the bearing.
4.2 Surface Finish and Lubrication Grooves
The surface finish and the inclusion of lubrication grooves are two critical design considerations for optimizing the performance of bimetal composite bearings. Both of these factors influence the bearing’s ability to reduce friction, distribute lubricant, and withstand wear over time.
Effect of Surface Finish on Performance
The surface finish of the bearing surface plays a significant role in minimizing friction and wear. A smooth finish reduces the contact area between the bearing and the moving parts, decreasing the friction coefficient and promoting better lubrication distribution. However, an overly smooth surface may not retain enough lubricant, leading to insufficient lubrication and increased wear.
In contrast, a textured or slightly roughened surface may promote better oil retention and improve the bearing’s overall performance in high-load applications. The choice of surface finish depends on the specific operating conditions, such as load, speed, and the type of lubricant used.
Types and Benefits of Lubrication Grooves
Lubrication grooves are often incorporated into the bearing surface to facilitate the distribution of lubricant and enhance performance. These grooves allow for a continuous supply of lubricant between the bearing and its mating surface, reducing friction and preventing metal-to-metal contact. Common types of lubrication grooves include:
Straight grooves: Run along the length of the bearing and are used in high-load applications.
Spiral grooves: Designed to provide better lubrication flow, especially in rotary applications.
Lubrication grooves are particularly important in applications where continuous lubrication is not possible or where dry running is required.
4.3 Load Capacity and Operating Conditions
The load capacity of a bimetal composite bearing is a critical factor in its design, as it determines the maximum load the bearing can support without failure. Several factors influence the bearing’s load capacity, including the materials used, the bearing dimensions, and the lubrication system.
Factors Affecting Load Capacity
Material Strength: The strength of the steel backing and the bearing surface material directly impacts the bearing's load capacity. For example, bearings with a thicker steel backing can typically support higher loads.
Bearing Geometry: The shape and size of the bearing, including the thickness of the bearing layer, can affect how evenly the load is distributed across the bearing surface.
Lubrication: Proper lubrication is essential for reducing friction and distributing the load evenly across the bearing surface. Insufficient lubrication can lead to increased wear and a reduction in load capacity.
Considerations for Temperature, Speed, and Lubrication
Temperature: Bearings must be designed to operate within a specific temperature range. High temperatures can affect the material properties of both the steel backing and the bearing surface, leading to increased wear or reduced load capacity. For high-temperature applications, materials with higher thermal resistance, such as bronze or special alloys, may be used.
Speed: The speed at which the bearing operates also influences its design. High-speed applications require bearings that can withstand centrifugal forces and maintain stable lubrication under fast rotation.
Lubrication: The type of lubrication (oil, grease, or dry lubrication) and the availability of a continuous lubrication system are important factors in ensuring the bearing operates efficiently. The choice of lubrication will affect friction, wear, and heat generation in the bearing.
Manufacturing Processes
5.1 Cladding and Bonding Techniques
The manufacturing process for bimetal composite bearings involves several critical steps, with the most important being the cladding and bonding of the two materials. The bonding process ensures a strong and durable attachment between the steel backing and the bearing surface, which is crucial for the bearing's overall performance.
Methods for Bonding Different Metal Layers
Cladding: Cladding is a process in which a thin layer of one material (e.g., bronze or aluminum) is bonded to a thicker layer of another material (e.g., steel). This is often done by applying heat and pressure to fuse the two layers together. The bonding may occur through methods such as hot rolling, extrusion, or sintering, depending on the specific materials used.
Diffusion Bonding: In diffusion bonding, heat and pressure are applied to the metal layers in a controlled atmosphere to allow atoms from the two materials to diffuse and form a metallurgical bond. This process creates a strong bond without the need for adhesives or filler materials, ensuring a seamless and durable attachment.
Explosive Bonding: Explosive bonding is a high-energy technique in which a controlled explosive charge is used to accelerate one metal layer onto the surface of another. This process creates a metallurgical bond between the layers and is typically used for materials that are difficult to bond using conventional methods, such as aluminum and steel.
Ensuring Strong and Reliable Adhesion
To ensure the strength and reliability of the bond, manufacturers must carefully control the temperature, pressure, and processing time during the cladding or bonding process. Any inconsistencies in the bond can lead to bearing failure, so it is essential that the materials are properly prepared and the process is tightly controlled.
5.2 Machining and Finishing
Once the cladding or bonding process is complete, the next step is machining and finishing the bearing to precise dimensions. This is crucial to ensure that the bearing meets the required tolerances and operates efficiently.
Precision Machining for Dimensional Accuracy
Machining involves cutting, grinding, and turning the bearing to achieve the correct dimensions and surface finish. CNC (Computer Numerical Control) machines are often used to achieve high precision and consistency. This step ensures that the bearing will fit properly in its designated application and will function smoothly without excessive wear.
Surface Finishing Techniques
After machining, the surface of the bearing is often treated to improve its friction properties and enhance its resistance to wear. Common surface finishing techniques include:
Polishing: Polishing the bearing surface smoothes out any rough areas, reducing friction and wear.
Shot Peening: This process involves bombarding the surface with small steel balls to create a compressive stress layer that can improve the bearing’s fatigue strength and wear resistance.
Coating: Some bearings undergo additional coating processes, such as nickel or chrome plating, to further enhance their corrosion resistance or wear properties.
5.3 Quality Control and Testing
Ensuring the quality and reliability of bimetal composite bearings is essential to their performance in critical applications. Rigorous testing and quality control measures are necessary to ensure that each bearing meets the required standards.
Non-destructive Testing Methods
Non-destructive testing (NDT) techniques are commonly used to detect defects in the bearing without damaging it. These methods include:
Ultrasonic Testing: Used to check for voids or cracks in the material that could weaken the bond between the layers.
X-ray Inspection: This method can identify internal flaws or inconsistencies in the bearing structure.
Magnetic Particle Testing: Often used for detecting surface and subsurface cracks, particularly in steel-backed bearings.
Performance Testing Under Various Conditions
To ensure the bearing can withstand the conditions it will encounter in service, it undergoes performance testing. This may include:
Load Testing: To verify the bearing's ability to support the required load without excessive deformation or failure.
Temperature Testing: To assess the bearing's performance under both high and low-temperature conditions.
Wear Testing: To measure the bearing’s resistance to wear and its longevity under typical operating conditions.
Applications of Bimetal Composite Bearings
6.1 Automotive Applications
Bimetal composite bearings are widely used in the automotive industry, primarily in engine and transmission components. These bearings are valued for their ability to withstand high loads, reduce friction, and enhance durability, all of which are essential in automotive applications.
Engine Bearings: Crankshaft, Connecting Rod
In internal combustion engines, bimetal composite bearings are used in critical components such as crankshafts and connecting rods. These bearings endure continuous high loads and rotational speeds, making them ideal candidates for bimetal technology. The steel backing provides the necessary structural support, while the bearing layer (often bronze or aluminum) offers excellent wear resistance and low friction.
Bimetal composite bearings used in engine applications help improve engine efficiency, reduce fuel consumption, and increase the overall lifespan of engine components. Their ability to maintain low friction even under high temperatures ensures smooth operation and less heat generation, contributing to better overall performance.
Transmission Components: Bushings, Thrust Washers
Bimetal composite bearings are also used in transmission components such as bushings and thrust washers. These parts are exposed to varying load conditions, rapid rotational speeds, and significant stress. The combination of materials allows these bearings to offer both high load-bearing capacity and excellent wear resistance, ensuring the reliable operation of the transmission system.
In addition to their durability, bimetal composite bearings in transmissions help improve the overall efficiency of the system by reducing friction and wear, leading to smoother gear shifts and reduced maintenance costs.
6.2 Industrial Applications
Bimetal composite bearings also play a crucial role in industrial machinery and equipment. These bearings are found in heavy-duty applications, including construction machinery, mining equipment, and hydraulic systems, where their durability and wear resistance are highly valued.
Heavy Machinery: Construction Equipment, Mining Machinery
Heavy machinery used in construction, mining, and other industrial sectors demands components that can withstand extreme loads and harsh operating conditions. Bimetal composite bearings are ideal for use in these machines, such as in the wheel hubs, drive shafts, and other high-load components.
These bearings help reduce friction and wear, which prolongs the lifespan of machinery and reduces the need for frequent maintenance. The combination of a strong steel backing and a wear-resistant bearing layer enables these bearings to handle the intense forces involved in heavy-duty applications.
Hydraulic Systems: Pumps, Motors, Cylinders
Hydraulic systems, which rely on the controlled movement of fluids to transmit power, also benefit from the use of bimetal composite bearings. Bearings used in pumps, motors, and cylinders must perform efficiently in high-pressure environments and maintain smooth operation under fluctuating loads. The high load capacity and wear resistance of bimetal composite bearings make them an ideal choice for these systems, helping to reduce downtime and increase the reliability of hydraulic machinery.
6.3 Aerospace Applications
The aerospace industry requires components that can perform reliably under extreme conditions, such as high speeds, high loads, and wide temperature ranges. Bimetal composite bearings are often used in critical aerospace applications where performance, durability, and weight are crucial factors.
Landing Gear Components
Bimetal composite bearings are used in landing gear systems, where they are subjected to high stresses during takeoff, landing, and taxiing. The bearings must support the weight of the aircraft and ensure smooth movement of the landing gear mechanisms. The combination of high load capacity, wear resistance, and corrosion resistance makes bimetal composite bearings well-suited for this demanding application.
Control Surface Bearings
Bimetal composite bearings are also found in control surfaces such as ailerons, elevators, and rudders. These bearings need to operate under high-speed conditions while maintaining precise control. Their ability to reduce friction and resist wear ensures that control surfaces respond quickly and accurately, which is essential for flight safety and performance.
Installation and Maintenance
7.1 Proper Installation Techniques
The correct installation of bimetal composite bearings is critical for ensuring optimal performance and longevity. Improper installation can lead to misalignment, excessive wear, or bearing failure, which can compromise the machinery's operation.
Ensuring Correct Alignment
One of the most important aspects of installation is ensuring that the bearing is aligned correctly with its mating components. Misalignment can lead to uneven loading, which may cause localized wear, increased friction, and premature bearing failure. It is essential to carefully check the alignment of the bearing during installation, particularly in rotating machinery where precise alignment is crucial for smooth operation.
Avoiding Damage During Installation
Bimetal composite bearings, particularly those with softer bearing layers like bronze or aluminum, can be susceptible to damage if mishandled during installation. Sharp impacts or improper handling can cause surface damage, leading to wear issues or even cracking. To avoid this, it’s important to use proper tools and techniques during installation. Using protective sleeves or cushioned support during handling can help prevent damage to the bearing's surface.
7.2 Lubrication Requirements
Lubrication is essential for the proper operation of bimetal composite bearings, as it reduces friction, dissipates heat, and prevents metal-to-metal contact between the bearing and the shaft or other moving parts. The type and amount of lubrication required depend on the specific application and operating conditions.
Importance of Proper Lubrication
Lubrication plays a key role in extending the life of a bimetal composite bearing. Proper lubrication minimizes friction, which reduces wear and heat buildup. It also helps in distributing load more evenly across the bearing surface, preventing localized damage or overheating. Without adequate lubrication, the bearing may experience higher wear rates, increased friction, and eventual failure.
Types of Lubricants and Their Applications
Oil: Oil is the most common lubricant for bimetal composite bearings, especially in high-load, high-speed applications. It is effective at reducing friction and heat buildup, and can be used in both splash and forced lubrication systems. Mineral oils, synthetic oils, or semi-synthetic oils can be used depending on the operating conditions, such as temperature and speed.
Grease: Grease is often used for bearings in low-speed applications or where oil lubrication is not feasible. It provides better sealing properties and can offer longer-lasting lubrication under certain conditions.
Dry Lubrication: In some applications where traditional lubricants cannot be used, dry lubrication materials such as PTFE (Polytetrafluoroethylene) or MoS₂ (Molybdenum disulfide) coatings are applied. These lubricants are often used in food processing, cleanrooms, or other environments where wet lubrication could be detrimental.
7.3 Inspection and Replacement
Regular inspection and maintenance are essential for ensuring the continued performance of bimetal composite bearings. Over time, even the best bearings will show signs of wear, and timely inspection can prevent unexpected failures.
Signs of Wear and Damage
Excessive Noise or Vibration: Unusual noises or vibrations can indicate that the bearing is worn out or misaligned. These signs should be addressed immediately to prevent further damage.
Visible Surface Damage: Cracks, scoring, or wear marks on the bearing surface are clear indicators that the bearing is no longer functioning efficiently. These issues may arise from insufficient lubrication, misalignment, or overloading.
Increased Operating Temperatures: A significant rise in temperature during operation is another sign that the bearing may be experiencing excessive friction or wear. This could be due to inadequate lubrication or damage to the bearing surface.
Recommended Replacement Intervals
The recommended replacement interval for bimetal composite bearings depends on the application, operating conditions, and bearing material. Bearings in high-load or high-temperature environments may require more frequent inspection and replacement. However, with proper lubrication and maintenance, bimetal composite bearings can often last for extended periods before needing replacement. Regular monitoring and adherence to manufacturer guidelines will help maximize the bearing’s lifespan and prevent unexpected downtime.
Advantages and Disadvantages
8.1 Benefits of Bimetal Composite Bearings
Bimetal composite bearings offer a range of advantages, making them an excellent choice for applications requiring high performance and durability. These benefits are crucial for industries such as automotive, aerospace, and heavy machinery, where reliability and cost-effectiveness are essential.
High Load Capacity and Wear Resistance
One of the primary benefits of bimetal composite bearings is their high load capacity. The steel backing provides robust structural support, while the bearing surface (often made from bronze, aluminum, or other materials) offers excellent wear resistance. This combination allows the bearing to perform well under heavy loads, reducing the risk of wear or failure even in demanding environments.
Improved Fatigue Strength
Bimetal composite bearings are designed to withstand the repetitive loading cycles typically seen in high-speed and high-load applications. The combination of materials provides enhanced fatigue resistance, allowing the bearing to perform reliably over an extended period. This is particularly important in applications such as engine bearings, where components undergo constant stress.
Cost-effectiveness
Bimetal composite bearings offer a cost-effective solution, especially when compared to full metal or ceramic bearings. The steel backing is typically less expensive than other materials, and the combination of materials can provide superior performance at a lower cost. In addition, the long lifespan and reduced maintenance requirements of bimetal composite bearings help reduce overall operating costs.
8.2 Limitations and Considerations
While bimetal composite bearings offer numerous advantages, there are also some limitations and considerations to keep in mind when choosing them for a specific application.
Potential for Corrosion in Certain Environments
Despite the corrosion-resistant properties of materials like bronze and aluminum, bimetal composite bearings can still be susceptible to corrosion in certain environments. For example, exposure to highly acidic or alkaline conditions can lead to the degradation of the bearing material. Additionally, in applications where moisture or chemicals are prevalent, extra attention must be paid to the selection of materials and coatings to prevent corrosion.
Complexity of Manufacturing
The manufacturing process for bimetal composite bearings can be more complex and time-consuming compared to standard bearing designs. Bonding two different metals requires specialized techniques, such as cladding, diffusion bonding, or explosive bonding, to ensure a strong and reliable bond. This complexity can lead to higher initial manufacturing costs and may require more stringent quality control measures.
Limited Performance in Extreme Environments
While bimetal composite bearings perform well in a wide range of applications, they may not be suitable for extremely high-temperature or high-speed environments. For applications requiring extreme performance, such as in some aerospace or high-performance racing applications, specialized materials like ceramics or advanced alloys might be more appropriate. Additionally, bimetal bearings may have limitations in environments where the bearing surface is exposed to severe wear or corrosion over long periods.
Future Trends in Bimetal Composite Bearings
9.1 Material Innovations
As industries continue to evolve, so too does the need for advanced materials and technologies. The future of bimetal composite bearings is likely to be shaped by material innovations that offer improved performance, increased lifespan, and the ability to withstand more extreme operating conditions.
Development of New Alloy Combinations
Researchers are constantly exploring new alloy combinations that can further improve the properties of bimetal composite bearings. For example, alloys with enhanced resistance to wear, higher fatigue strength, and improved corrosion resistance are being developed. These innovations will likely extend the bearing's lifespan in harsh environments, reducing the need for frequent replacements and improving overall efficiency.
In particular, the automotive and aerospace industries are likely to see advancements in lightweight alloy combinations. For instance, there could be increased use of advanced aluminum alloys, which offer both strength and reduced weight, making them ideal for high-performance vehicles and aircraft.
Use of Advanced Coatings
The development of advanced coatings for bimetal composite bearings is another promising trend. These coatings can enhance the wear resistance, corrosion protection, and lubricity of the bearing surface, leading to longer service life and better performance. New coatings, such as diamond-like carbon (DLC) or ceramic coatings, could be introduced to improve the bearing's ability to operate under extreme loads and temperatures.
9.2 Design and Manufacturing Advancements
As manufacturing technologies advance, there will be opportunities to improve both the design and production processes of bimetal composite bearings, resulting in more efficient, cost-effective, and high-performing products.
Optimized Bearing Designs
Future advancements in computational design and simulation tools may lead to optimized bearing geometries that better distribute loads and reduce wear. By using simulation software, manufacturers can test various bearing designs before production, enabling the development of bearings that perform even more efficiently and with greater longevity.
For instance, improvements in surface texturing and the incorporation of multi-layer designs could help achieve better lubrication retention and reduce friction even further. Additionally, designs that allow for self-lubrication or include grooves to distribute lubricant more efficiently could become more common.
Improved Manufacturing Processes
The future of bimetal composite bearing manufacturing is also likely to benefit from advancements in additive manufacturing (3D printing) and precision casting. These technologies could allow for the creation of more complex bearing designs with more precise tolerances, ultimately improving performance and reducing material waste.
Additionally, as automation and robotics continue to improve, the efficiency of bearing production may increase, leading to reduced costs and faster lead times. These advancements could make high-performance bearings more affordable and accessible to a wider range of industries.
Case Studies
10.1 Case Study 1: Automotive Application
Detailed Example of Bimetal Bearings in an Engine
Bimetal composite bearings are commonly used in automotive engines due to their ability to withstand high loads and reduce friction. In this case study, we’ll examine the role of bimetal composite bearings in the crankshaft and connecting rod of an internal combustion engine.
Background
The crankshaft and connecting rod are two critical components in the engine’s powertrain. They experience high mechanical stresses as the engine operates, with the crankshaft undergoing cyclic loads from the pistons and the connecting rod transferring these forces to the crankshaft. The bearings used in these components must therefore be capable of withstanding extreme forces while minimizing friction and wear.
Challenges
The primary challenge for these bearings is managing the intense pressure and friction during engine operation. Traditional bearings often wear out quickly, especially under the high speeds and temperatures typical in engine environments. This can result in costly maintenance and reduced engine performance.
Solution
Bimetal composite bearings, particularly steel-backed bronze bearings, offer the necessary strength and durability for these high-stress components. The steel backing provides the necessary structural support, while the bronze bearing layer ensures excellent wear resistance and friction reduction. This combination significantly extends the lifespan of the bearings, reduces the risk of failure, and improves the overall performance of the engine.
Results
Using bimetal composite bearings in the crankshaft and connecting rod has resulted in improved engine efficiency, reduced fuel consumption, and enhanced overall engine longevity. The bearings’ ability to reduce friction has also led to smoother engine operation, resulting in less heat generation and a quieter ride for the vehicle.
10.2 Case Study 2: Industrial Application
Detailed Example of Bimetal Bearings in Heavy Machinery
Heavy machinery used in construction and mining operates in some of the most challenging environments. These machines are exposed to extreme loads, dirt, dust, and high levels of vibration. In such demanding conditions, the performance and durability of bearings are crucial to maintaining the machine's functionality and minimizing downtime.
Background
In a mining application, large excavators are used to dig and move earth in open-pit mines. The equipment includes a rotating bucket and a boom, which are supported by heavy-duty bearings. These bearings experience high radial and axial loads, as well as exposure to dirt, dust, and moisture, which can accelerate wear and lead to frequent bearing failure.
Challenges
The harsh operating environment, combined with the constant movement and heavy loads, presents a significant challenge for bearing materials. In this application, bearings must not only handle the extreme pressures but also endure contamination from dirt and water, which can lead to rust and corrosion if not properly protected.
Solution
Steel-backed bronze bearings were chosen for this application due to their excellent wear resistance and ability to handle high radial loads. Additionally, the bronze layer offers good corrosion resistance, which is essential for protecting the bearings from the elements in the mining environment. To further enhance the performance, lubrication grooves were incorporated into the bearing design to ensure a continuous supply of lubricant, even in dusty and high-pressure conditions.
Results
The use of bimetal composite bearings in this mining machinery resulted in reduced downtime and maintenance costs. The bearings were able to withstand the heavy loads and extreme conditions, with significantly less wear than traditional bearings. The lubrication grooves ensured that the bearings continued to operate smoothly, even in the presence of dirt and moisture, extending their service life.
Conclusion
11.1 Summary of Key Points
Bimetal composite bearings offer a powerful solution for high-performance applications across a variety of industries. By combining the strength of steel with the wear resistance and lubrication properties of softer metals like bronze or aluminum, these bearings provide excellent durability, high load capacity, and resistance to fatigue. Some of the key benefits of bimetal composite bearings include:
High Load Capacity: The steel backing provides the strength needed to support heavy loads, while the bearing layer handles friction and wear resistance.
Wear Resistance: The bearing material’s composition, often bronze or aluminum, offers superior wear resistance, even in challenging environments.
Corrosion Resistance: Bimetal composite bearings are often designed with materials that resist corrosion, making them ideal for use in environments where exposure to moisture or chemicals is a concern.
Fatigue Strength: These bearings are designed to handle repetitive loading without failure, making them suitable for demanding, long-term use.
Bimetal composite bearings are widely used in automotive, industrial, and aerospace applications, contributing to the longevity and efficiency of machinery and vehicles.
11.2 Final Thoughts
When selecting a bearing for a specific application, it is essential to consider the environmental factors, load requirements, and desired lifespan of the component. Bimetal composite bearings offer a balance of strength, durability, and wear resistance, making them a solid choice for a wide range of industries. However, it’s important to be mindful of the potential for corrosion in certain environments and the complexity of their manufacturing processes.
As industries continue to evolve, the future of bimetal composite bearings looks promising, with advancements in materials, coatings, and manufacturing processes leading to more efficient, cost-effective, and high-performance products. The continued development of new alloys and the integration of advanced manufacturing techniques will likely further enhance the capabilities of bimetal composite bearings, making them even more suitable for a variety of demanding applications.
In conclusion, selecting the right bimetal composite bearing for your application requires a thorough understanding of the operating conditions and material properties. With proper installation, maintenance, and lubrication, bimetal composite bearings can offer extended service life and reliable performance, reducing the need for frequent replacements and minimizing downtime.
